| الاسم التجاري: | Sinuo |
| رقم الطراز: | SN2202 |
| الـ MOQ: | 1 |
| السعر: | Customized |
| شروط الدفع: | تي/تي |
| القدرة على التوريد: | 10 مجموعات في الشهر |

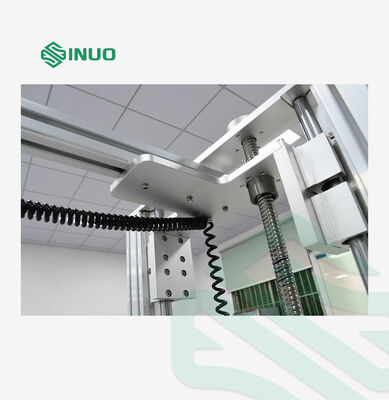

This steel ball impact tester is used to test the anti-drop impact performance of EV accessories. It features two switchable test modes: vertical free drop impact and horizontal pendulum impact on test samples. Equipped with electric lifting and electromagnetic clamping structure, it supports adjustable drop height from 0.4m to 1.5m to generate various impact energy as required.
| Test Purpose | Conduct drop impact resistance test on equipment enclosures |
| Test Principle | Free vertical drop or free pendulum impact on test samples |
| Equipment Structure & Features | Supports two test modes: vertical drop impact and horizontal pendulum impact |
| Operating Environment |
Power Supply: AC220V±10%, 50/60Hz; Operating Temp: 0~40℃; Humidity: 30%~90% |
| Impact Steel Ball | Steel ball: Φ50.8 mm, mass 535 g |
| Impact Mode | Vertical drop impact and pendulum impact, switchable. |
| Drop Height | Adjustable range: 0.4 m ~ 1.5 m |
| Impact Energy |
Formula: E=mgH, supports impact energy values (J) listed below and custom requirements.
|
| Lifting Mode |
Electric drive |
| Clamping Method |
Electromagnetic adsorption & release control |
