| الاسم التجاري: | Sinuo |
| رقم الطراز: | SNEQ08 |
| الـ MOQ: | 1 |
| السعر: | Customized |
| شروط الدفع: | تي/تي |
| القدرة على التوريد: | 10 مجموعات في الشهر |

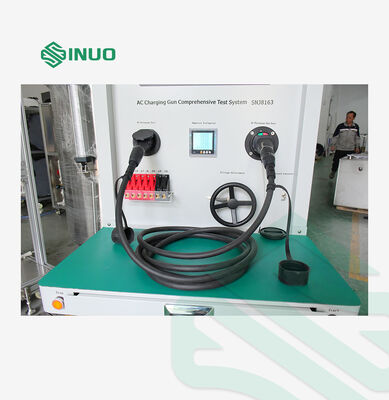

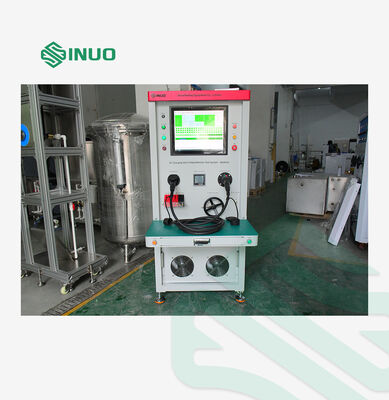

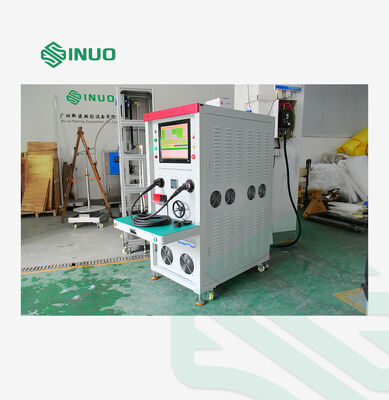

This comprehensive test system is designed for functional and safety verification of AC/DC charging guns complying with Chinese, European, and American standards. It supports automatic QR code/barcode association, one‑button full‑function automatic testing, real‑time data storage, report generation, and pass/fail printing. Featuring high efficiency and labor savings, it is ideal for mass production line inspection in manufacturing facilities.
| Power Input | Single phase AC 220V / 50Hz |
| Air Supply | 0.6MPa |
| Control System | PLC + industrial computer |
| MES Integration | Optional (additional cost) |
| Resistance Test | 1–5000Ω, accuracy ±1% |
| Thermistor Test | 100–50,000Ω, accuracy ±2% |
| Drive voltage | DC12V |
| Insulation Test (Line to Line) | |
| Test modes | Single phase, three phase, DC (positive/negative/ground) |
| Insulation Voltage | DC 100–1000V (adjustable) |
| Lower Limit | 1MΩ – 1GΩ (adjustable) |
| Accuracy | ±5% |
| Alarm | Activates when resistance is below threshold |
| Withstand Voltage Test (Line to Line) | |
| Test modes | Single phase, three phase, DC (positive/negative/ground) |
| Voltage Range | AC 0–5kV / DC 0–6kV (adjustable) |
| Leakage Limit | AC 0.1mA–20mA; DC 0.01mA–5mA (adjustable) |
| Accuracy | ±1.5% + 3 digits |
| Mechanical & Structure | |
| Test Station | 1 station |
| Gun Mounts | CN / EU / US standard AC/DC gun sockets supported |
| socket Height | ~750–1000mm (ergonomic design) |
| Dimensions | W900mm × D800mm × H1800mm |
| Weight | Approx. 300kg |
