| الاسم التجاري: | Sinuo |
| رقم الطراز: | SNQC1007 |
| الـ MOQ: | 1 |
| السعر: | Customized |
| شروط الدفع: | تي/تي |
| القدرة على التوريد: | 5 مجموعات شهريا |

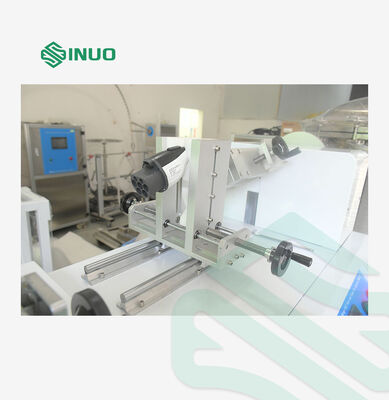

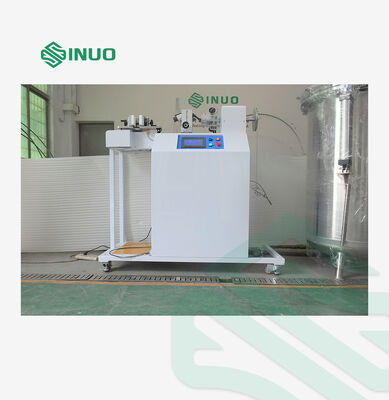

This pull force and torque test equipment is used to test the vehicle plugs, and socket-outlets, connectors to withstand the specified pull force and torque.
It is designed and manufactured according to IEC62196-1: 2022 clause 25.3 Figure 17 and table 11, IEC60309-1: 2012 clause 23.3, etc.
Pull is realized by single-phase speed-regulating motor to drive the eccentric mechanism, the motor speed is adjustable, to ensure the accurate time for each pull force applied; torque is achieved by releasing the torque weight by air cylinder.
| Operation Method | Button operation |
| Drive Mode | Motor and cylinder |
| Pull Force Weights | 40N*1, 50N*1, 60N*1, 100N*2, 250N*1 Can achieve 160N, 200N, 240N, 250N, 500N, 600N pull force |
| Torque Weights | 6N*1, 7N*1, 12N*1, 15N*1, 23N*1, 110N*1 Can achieve 0.6N.m, 0.7N.m, 1.2N.m, 1.5N.m, 2.3N.m, 11N.m torque |
| Torque Arm | Ф200mm |
| Pull Frequency | 1 cycle/s |
| Pull Cycles | 1-999999 cycles, can be preset, default 100 cycles |
| Torque Applied Time | 0.01S ~ 99 hours 59 minutes 59 seconds, default 1 min |
| Fixture | One set of universal fixtures |
| Equipment Dimensions & Weight | L 1560mm*W 600mm*H 1530mm, approx. 220KG |
| Power Supply | Single phase AC220V±10%, 50/60Hz, 10A |
