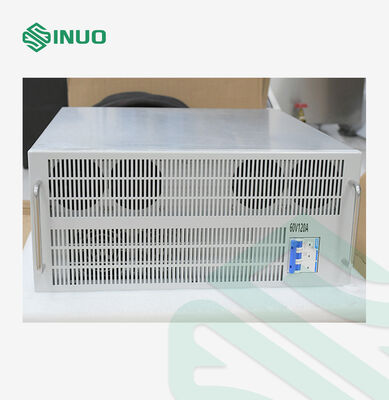

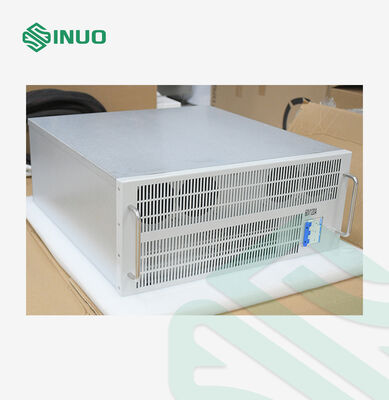

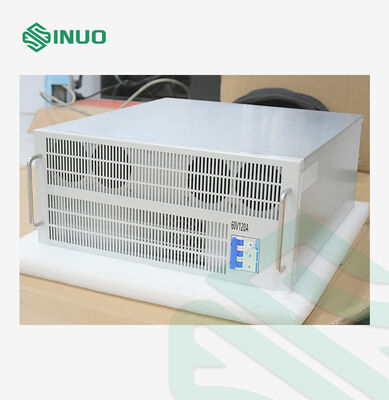

EV Battery Testing Equipment with 60V 120A Capacity Featuring Fully Independent Channels and High Precision Feedback Technology

EV Battery Testing Equipment with 60V 120A Capacity Featuring Fully Independent Channels and High Precision Feedback Technology

الاسم التجاري:	Sinuo
رقم الطراز:	SN552-30V200A
الـ MOQ:	1
السعر:	Customized
شروط الدفع:	تي/تي
القدرة على التوريد:	1 مجموعات / شهر

معلومات مفصلة

وصف المنتج

معلومات مفصلة

مكان المنشأ:

الصين

إصدار الشهادات:

Calibration Certificate (Cost Additional)

نطاق الجهد التفريغ:

8 فولت ~ 60 فولت

نطاق جهد الشحن:

0 فولت ~ 60 فولت

الحد الأدنى من تيار الإخراج:

± 300 مللي أمبير

الحد الأقصى للإخراج الحالي:

± 120 أ

وقت التحويل الحالي:

≥40 مللي ثانية

وقت استجابة البدء الحالي:

≤20ms

وضع عمل القناة:

مستقل تماما

عدد القنوات الرئيسية:

2 قنوات

تفاصيل التغليف:

حالة الخشب الرقائقي

القدرة على العرض:

1 مجموعات / شهر

إبراز:

60V 120A EV Battery Testing Equipment,Fully Independent Channels Battery Charge and Discharge Tester,High Precision Feedback Lithium Battery Testing Equipment

Fully Independent Channels Battery Charge and Discharge Tester

High Precision Feedback Lithium Battery Testing Equipment

وصف المنتج

EV Battery Testing Equipment

Comprehensive safety testing equipment enabling overcharge, overdischarge, and thermal runaway simulations for lithium battery systems.

Equipment Overview

High-precision feedback-type battery pack detection equipment designed for comprehensive performance testing of lithium-ion batteries. This system delivers exceptional power, efficiency, precision, and performance characteristics.

Tests lithium-ion battery capacity, state of charge, overcharge, and over-discharge parameters
Advanced electric energy feedback technology minimizes heat emission and power consumption
Modular architecture including host computer, middle computer, DC/AC and DC/DC modules
Real-time data collection for voltage, current, capacity, and energy metrics
Optional battery temperature data collection capability
Comprehensive database storage with advanced data analysis and reporting functions

Technical Specifications

Performance Parameter	Specification
Number of Main Channels	2 Channels
Channel Action Mode	Fully Independent
Main Channel Working Modes	Charging: CC, CV, CCCV; Discharging: CD, CP, Constant Voltage; Standby, Stop
Test Termination Conditions	Time, Voltage, Current, Capacity
Main Channel Voltage Range	Charging: 0V-60V; Discharge: 8V-60V
Voltage Accuracy	±(0.05%RD+0.05%FS)
Voltage Resolution	0.1mV
Main Channel Current Range	±300mA to ±120A
Current Accuracy	±(0.05%RD+0.05%FS)
Current Resolution	0.1mA
Current Response Time	Start: ≤20ms; Conversion: ≤40ms
Time Resolution	1000ms
Output Power	Single Channel: 7200W Maximum
Power Stability	±0.1%FS
Efficiency	Charging/Discharging: 85% Maximum
Harmonic Distortion	≤3%
Power Factor	≥0.99
Auxiliary Channel Function	Condition-based step termination or switching
Communication Interface	RJ-45 Network for stable, real-time data collection
