| الاسم التجاري: | Sinuo |
| رقم الطراز: | SNQC1009 |
| الـ MOQ: | 1 |
| السعر: | Customized |
| شروط الدفع: | تي/تي |
| القدرة على التوريد: | 5 مجموعات / شهر |
Automotive Connector Flexing Test Machine EV Plug and Coupler Flexing Tester
Complied Standards & Clauses
IEC62196-1: 2014 “Plug, socket-outlets, vehicle connectors and vehicle inlets–Conductive charging of electric vehicle-Part1: General requirements” clause 26.4, figure 14
IEC60309-1: 2012 “Plug, socket-outlets and couplers for industrial purposes–Part1: General requirements” clause 24.4, figure 9
Equipment Structure

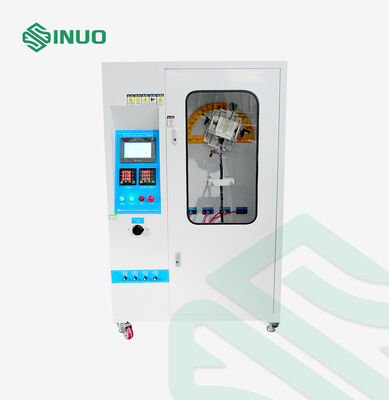

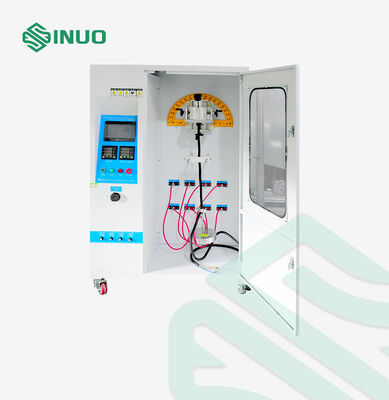

This Mechanical Load Flexing Test Equipment is designed to evaluate the mechanical endurance of vehicle plugs, socket-outlets, and non-rewireable couplers under repeated flexing. Driven by a high-precision servo motor, the system swings the sample from side to side, accurately simulating real-world bending and flexing conditions. Once the preset number of cycles is reached, the test stops automatically, ensuring consistent and repeatable results.
The built-in adjustable load allows precise control over the mechanical stress applied to each sample, making it suitable for a wide range of automotive connectors and accessories. Its robust construction, intuitive operation, and reliable performance make this equipment ideal for automotive manufacturers, EV charging equipment producers, R&D laboratories, and third-party testing agencies seeking to ensure the durability and safety of their connectors and couplers.
This tester is an essential tool for verifying mechanical reliability, product quality, and compliance with international standards, giving manufacturers confidence that their vehicle connectors will withstand real-world usage.
Technical Parameters
| Test Station | Single |
| Electrical Control Method | PLC intelligent integrated control, 7-inch humanized touch interface operation |
| Flexing Rate | 0-60 cycles / min, can be preset |
| Flexing Cycles | 0~999999 can be preset, default 20000 cycles |

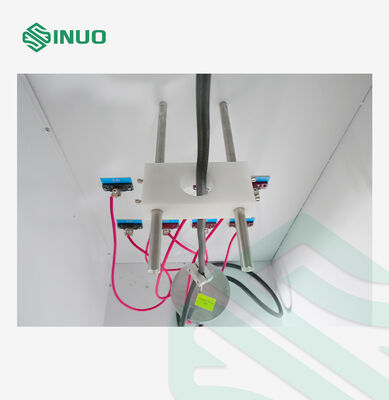

| Load Weights | 20N, 25N, 50N, 75N, 100N |

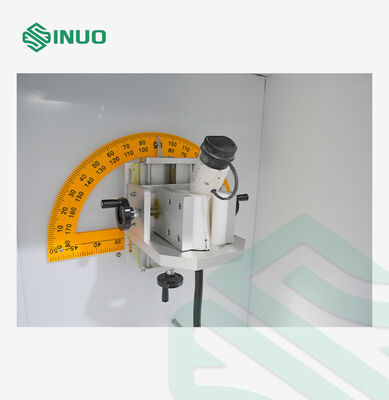

| Flexing Angle | 0-360° can be adjusted freely (default 90°, 45°on either side of the vertical) |
| Drive Mode | Servo motor |
| Sample Clamping Method | Mechanical clamping, the position of clamping point is adjustable |
| Test Judgment | Judging by the signals given when the current is conducting or not |
| Load Power | External, load cabinet with adjustable voltage between conductors 0-250V and current AC0-400A adjustable is optional |
