| الاسم التجاري: | Sinuo |
| رقم الطراز: | SNQC1013C |
| الـ MOQ: | 1 |
| السعر: | Customized |
| شروط الدفع: | T/T |
| القدرة على التوريد: | 1 sets/month |

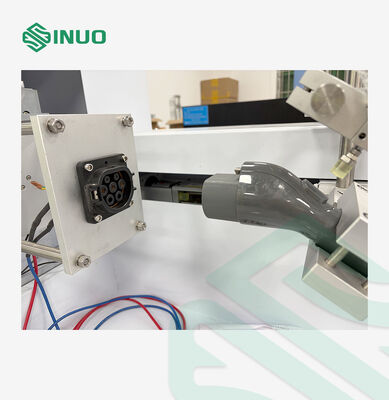

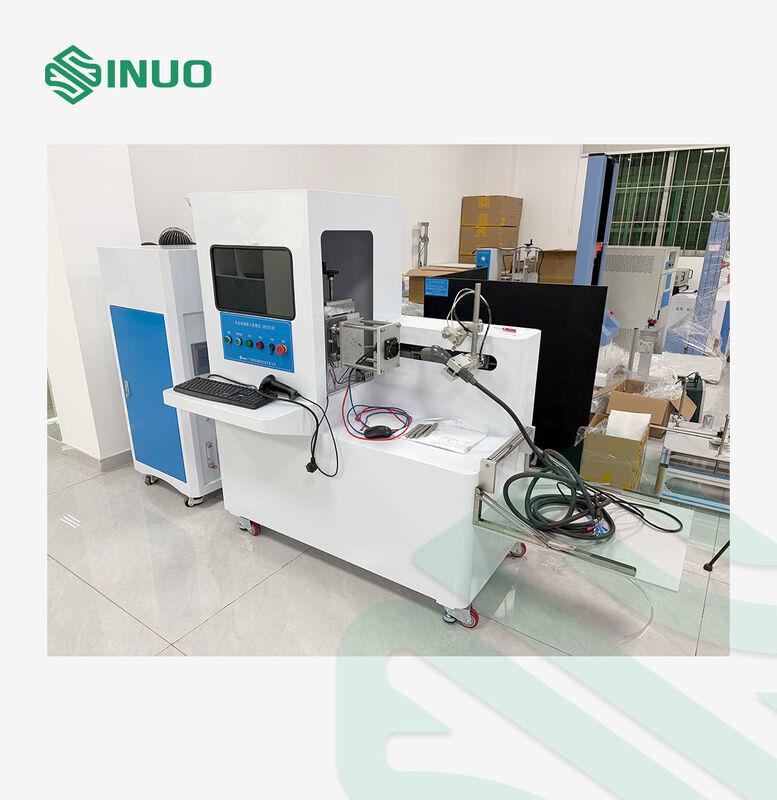

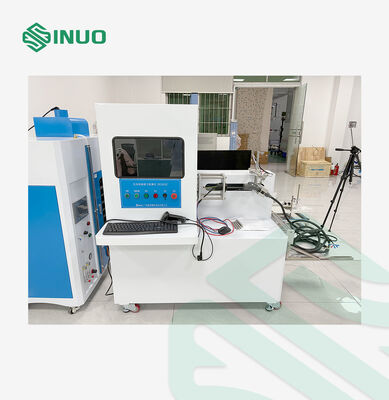

Electric Vehicle EV Charging Gun Plug-in/Plug-out Force Test Equipment
Equipment Overview
The Charging Gun Insertion & Withdrawal Force Tester is a high-precision tool specifically engineered for evaluating the plug-in and pull-out forces of EV charging connectors. Built for manufacturers who demand accuracy, stability, and efficiency, this system ensures every charging gun meets strict mechanical performance and safety requirements before entering the market.
Powered by a high-precision ball screw and advanced stepper motor drive, the tester delivers exceptionally smooth and consistent linear motion. With a Class-0.5 accuracy load cell and a fast 1000 Hz sampling rate, it captures even the slightest force variations with outstanding reliability.
Designed for real-world production environments, the system supports fully customized fixtures for different EV charging gun models. It also integrates barcode scanning for automated test initiation and result tracking—significantly improving testing efficiency and aiding in complete traceability.
Whether used for incoming inspection, R&D verification, or end-of-line quality control, this tester offers the precision, stability, and automation needed for large-scale EV charging connector manufacturing.
Technical Parameters
|
Item |
Specification |
|---|---|
| Test Capacity | 1 kN |
| Compliance | JIS B 7721 Tensile/Compression Tester – Class 0.5 |
| Moving Length | 300 mm |
| Moving Speed | 10.000 – 1000.000 mm/min |
| Motion Control | High-precision ball screw + high-precision stepper motor |
| Limit | 500 N |
| Fixture Base | 460 × 245 mm |
| Structure | Desktop type |
| Net Weight | Approx. 60 kg |
| Accuracy Level | 0.5 Class (measurement error ≤ 0.5%) |
| Load Sampling Frequency | 1000 times/sec |
| Load Cell Input Channels | 1 channel |
| Display Units | mN, N, kN (kgf, gf, lb(in) optional for overseas models) |
| Protection Functions | Upper/lower limit stops, overload protection, STOP button, emergency stop, software-defined limit protection |
| Rated Power | 300 VA |
| Power Supply | Single-phase AC100V–120V or AC200V–240V |
