| الاسم التجاري: | Sinuo |
| رقم الطراز: | SNQC1007B |
| الـ MOQ: | 1 |
| السعر: | Customized |
| شروط الدفع: | T/T |
| القدرة على التوريد: | 1 sets/month |
EVSE Testing Equipment EV Connector Test System Electric Vehicle Cable Tester
Complied Standards & Clauses
It is designed and manufactured according to IEC 61851-1:2017 clause 11.6.
Equipment Overview

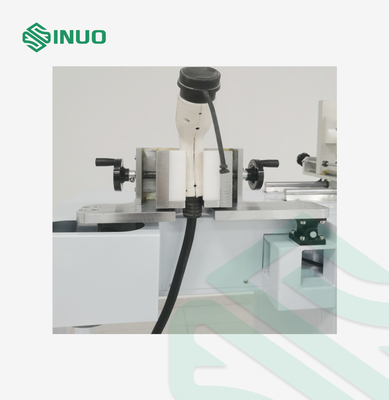

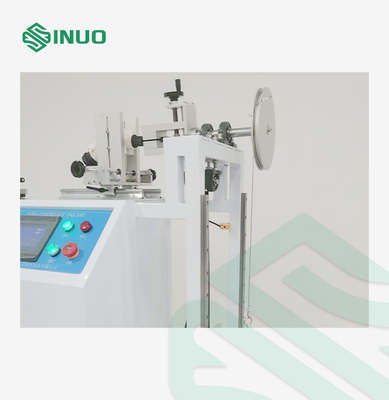

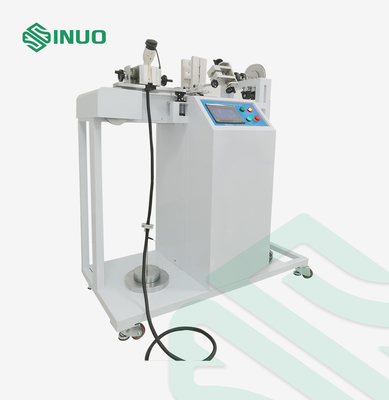

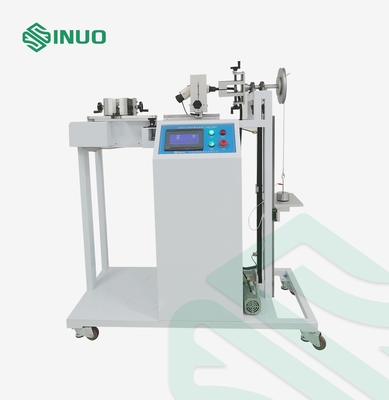

Ensure the mechanical safety and durability of EV charging connectors with the SNQC1007B Cable Anchorage Pull Force and Torque Test Apparatus.
Engineered in accordance with IEC 61851-1:2017 Clause 11.6, this precision device is designed to verify whether charging cable connections can withstand specified tension and torque levels—making it a critical tool for EVSE manufacturers and testing labs.
Equipped with PLC automatic control, a touchscreen interface, and programmable pull cycles and torque durations, this apparatus delivers highly repeatable and reliable testing. The system uses a motor-driven mechanism with weighted force application to simulate real-world mechanical stresses on vehicle and supply plugs.
With robust construction, intuitive operation, and compliance with international standards, the SNQC1007B is ideal for validating the mechanical anchorage performance of EV charging cables in R&D, quality control, and certification environments.
Technical Parameters
|
Item |
Specification |
|---|---|
| Test Standard | IEC 61851-1:2017, Clause 11.6 |
| Test Scope | EV charging station cable tension and torque tests |
| Control Mode | PLC automatic control, touchscreen operation |
| Drive Mode | Electric |
| Pull Force Levels | 160N, 200N, 240N, 250N, 500N (adjustable by weights) |
| Torque Levels | 0.6, 0.7, 1.4, 2.7, 5.4, 11.0, 16.3 N·m (adjustable by weights) |
| Torque Wheel Radius | R100mm (Diameter Φ200mm) ±0.5mm |
| Tensile Frequency | 1 time/second (detected by electrical signal) |
| Pull Cycles | 1–999999 (presettable, default 100 ±1 cycles) |
| Torque Application Time | 0–99H59M59S (presettable) |
| Power Supply | AC 220V ±10%, 50–60Hz, 1KW |
| Power Failure Memory | Yes (data storage on power-off) |
| Fixture | Universal clamp, one set |
| Working Conditions | Temp: 0–40°C; Humidity: 30–90% RH |
| Dimensions & Weight | Approx. 1600×600×1450mm; 180kg |
