| الاسم التجاري: | Sinuo |
| رقم الطراز: | SN4412-1000L |
| الـ MOQ: | 1 |
| السعر: | Customized |
| شروط الدفع: | تي/تي |
| القدرة على التوريد: | 10 مجموعات في الشهر |
This IPX9K waterproof test chamber fully complies with international standards:
IEC 60529:1989 + A1:1999 + A2:2013 Clause 14.2.9, IEC 62196-3:2026 Clause 20, IEC 62196-1:2025 Clause 20.2, DIN 40050-9 and ISO 20653.
These standards define IP protection ratings for electrical equipment housings of road vehicles, covering two core protection categories:
1. Protection against solid foreign bodies including dust;
2. Protection against high-pressure, high-temperature water ingress.

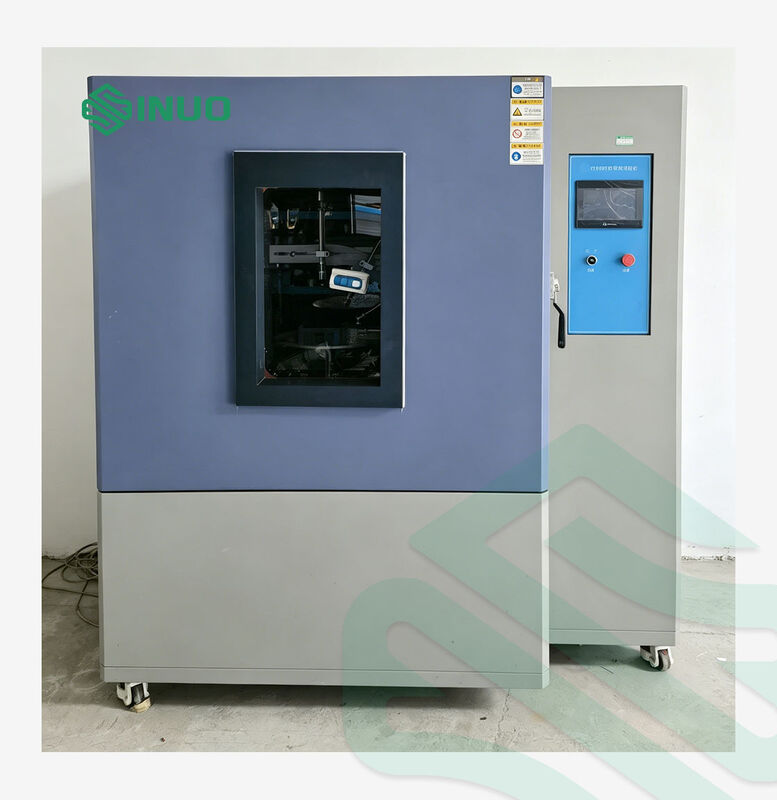

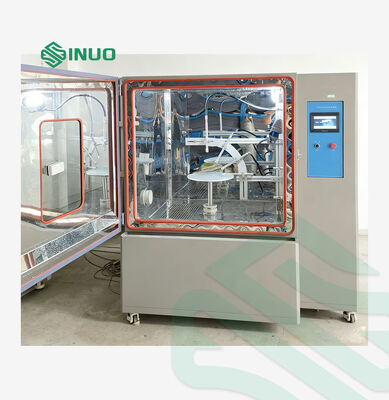

The outer cabinet and inner test chamber are both fabricated from SUS304 stainless steel.
The upper section integrates the test workspace and control panel; the lower section houses core components: imported Italian high-pressure pump & solenoid valves, SUS304 constant temperature and backwater tanks, turntable drive motor, and reduction transmission assembly.
All running parameters including water temperature, nozzle operation, pressure, test duration and flow rate are regulated by PLC. Users configure all settings via a 7-inch Taiwan WEINVIEW touchscreen, with upgraded industrial touchscreen options available.
| Chamber Structure Composition | Test room, water storage tank, control unit, product dewatering buffer zone, jet system |
| Inner Chamber Dimensions | L1000mm×W1000mm×H1000mm |
| Outer Cabinet Dimensions | L 1500mm × W 1200mm × H 1950mm |
| Jet System Core Components | High-pressure & high-temperature water pump, pressure gauge, solenoid valve, hydraulic pipeline |
| Pipeline Diameter | 3/4 inch |

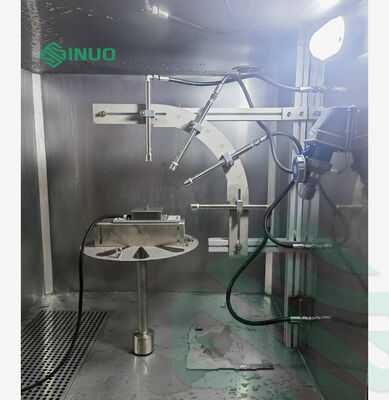

| Jet Nozzles | 4 pcs |
| Hot Water Jet Temperature | RT ~ 80°C ± 5°C (adjustable) |
| Jet Water Pressure | 80 ~ 100 bar (8000 ~ 10000 kPa, 81.5 ~ 101.9 kg/cm²) |
| Water Jet Flow Rate | 15 ± 1 L/min (14 ~ 16 L/min) |
| Nozzle-to-Sample Jet Distance | 100 ~ 200 mm |
| Water Jet Angle | 0°, 30°, 60°, 90° |
| Single-Angle Jet Test Time | 0 ~ 90 s, pre-settable & adjustable |
| Sample Turntable Load Capacity | ≤ 30 kg |
| Turntable Rotation Speed | 5 ~ 17 r/min |
| Turntable Diameter | Φ500 mm |
| Total Test Run Time Control | 1 min ~ 9999 min |
| Water Circulation System | Closed-loop water recycling design |
| Standard Jet Surface | Front face of the test sample |
| Pressure Monitoring | Real-time digital pressure gauge |
| Control System | Self-developed touchscreen control system |
| Chamber Waterproof Wall & Bracket | Tempered glass waterproof wall; stainless steel square tube bracket |
| Chamber Observation Door | Large-view tempered glass door with built-in wiper |
