Non-Rewireable Accessory Cable Flex Tester For Vehicle Connectors & Socket-Outlets

Non-Rewireable Accessory Cable Flex Tester For Vehicle Connectors & Socket-Outlets

الاسم التجاري:	Sinuo
رقم الطراز:	SNQC1009
الـ MOQ:	1
السعر:	Customized
شروط الدفع:	تي/تي
القدرة على التوريد:	10 مجموعات في الشهر

معلومات مفصلة

وصف المنتج

معلومات مفصلة

مكان المنشأ:

الصين

إصدار الشهادات:

Calibration Certificate (Cost Additional)

وضع القيادة:

محرك سيرفو

عينة لقط:

لقط الميكانيكية، لقط الموقف قابل للتعديل

زاوية الانحناء:

0-360 درجة قابل للتعديل بحرية

معدل الثناء:

0-60 دورة/دقيقة، قابلة للضبط مسبقًا

تحميل الأوزان:

20n ، 25n ، 50n ، 75n ، 100n ، 120n ، 140n ، 180n

مزود الطاقة:

تيار متردد ثلاثي الطور 380 فولت ±10%، 50/60 هرتز

تفاصيل التغليف:

الخشب الرقائقي

القدرة على العرض:

10 مجموعات في الشهر

وصف المنتج

Non-Rewireable Accessory Cable Flex Tester For Vehicle Connectors & Socket-Outlets

Product Overview

This flexing test apparatus is designed and manufactured in full compliance with the requirements of IEC 62196-1:2022 Clause 26.4 Table 14 and IEC 60309-1:2012 Clause 24.4 Figure 9, etc.

It is specially used to perform mechanical load flexing tests on non-rewireable accessories for vehicle plugs, socket-outlets and couplers.

Equipment Features

The equipment adopts PLC control with a 7-inch color touch HMI. Servo motor is applied to accurately control the flexing angle.
Flexing angle, flexing speed and test cycles can be preset on the touch screen, and the test runs automatically per the set parameters.
The equipment will stop automatically and give a prompt signal when the preset cycles are reached.
It features high-precision digital display, high-efficiency digital frequency conversion, precise speed regulation, 6-digit memory setting, multi-function modular fixture, rotation center alignment tool, and built-in load that can supply load voltage to the specimen during testing.

Technical Parameters

Test Station	Single station

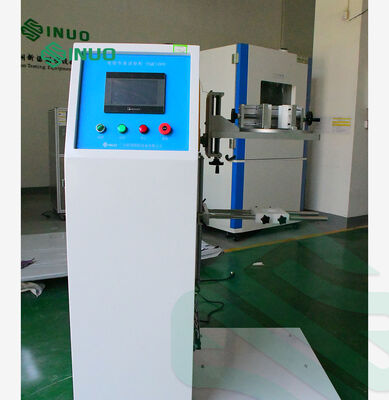

Control System	PLC intelligent integrated control, 7-inch color touch HMI
Drive Mode	Servo motor

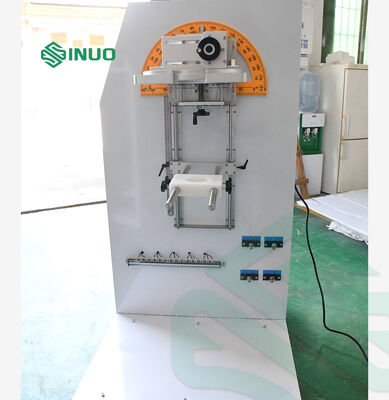

Sample Clamping	Mechanical clamping, clamping point adjustable

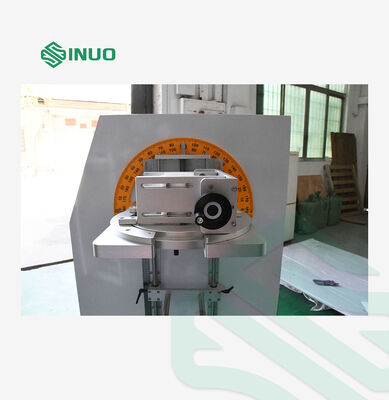

Flexing Angle	0-360° freely adjusted (default 90°, 45°on either side of vertical)
Flexing Rate	0-60 cycles / min, presettable
Flexing Cycles	0~999999 presettable (default:20000 cycles)
Load Weights	20N, 25N, 50N, 75N, 100N, 120N, 140N, 180N
Load Power	Built-in; phase voltage between conductors: 0-250V adjustable; AC current: 0-400A adjustable (Note: for load >400A, external power is required)
Test Judgment	Judged by on/off signal of current conduction
Equipment Dimensions & Weight	L 850mm W 800mm H 1500mm; approx. 300Kg
Power Supply	Three-phase AC 380V±10%, 50/60Hz
