IEC 60529 Test Equipment IPX1/IPX2 Water Vertical Drop Test Solution

IEC 60529 Test Equipment IPX1/IPX2 Water Vertical Drop Test Solution

الاسم التجاري:	Sinuo
رقم الطراز:	SN442
الـ MOQ:	1
شروط الدفع:	تي/تي
القدرة على التوريد:	10 مجموعات في الشهر

معلومات مفصلة

وصف المنتج

معلومات مفصلة

مكان المنشأ:

الصين

إصدار الشهادات:

Calibration Certificate (Cost Additional)

نطاق التدفق:

0.667-4.167 لتر/دقيقة

منطقة التنقيط:

1000*1000 مللي متر

تدفق الاختبار:

1 ~ 1.5 مم / دقيقة (IPX1) ، 3 ~ 3.5 مم / دقيقة (IPX2)

ارتفاع تنقيط الماء:

200 ملم

مادة جسم المعدات:

سبائك الألومنيوم الصناعية

وقت الاختبار:

1-9999 ثانية

يتحكم:

PLC وشاشة تعمل باللمس مقاس 7 بوصات

القرص الدوار:

يمكن ضبط 1-5r / min

تفاصيل التغليف:

تعبئة الصادرات

القدرة على العرض:

10 مجموعات في الشهر

إبراز:

PLC Touch Screen Control Water Ingress Testing Equipment,Industrial Aluminum Alloy Body IPX1/IPX2 Test Chamber,1000*1000mm Drip Area IEC 60529 Test Equipment

Industrial Aluminum Alloy Body IPX1/IPX2 Test Chamber

1000*1000mm Drip Area IEC 60529 Test Equipment

وصف المنتج

IEC 60529 Test Equipment IPX1/IPX2 Water Vertical Drop Test Solution

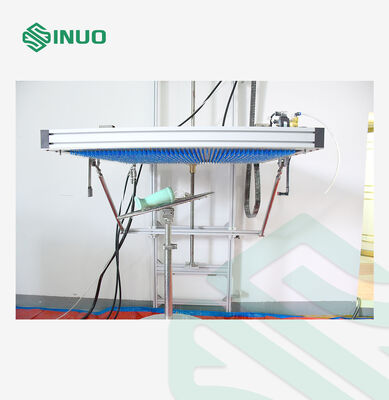

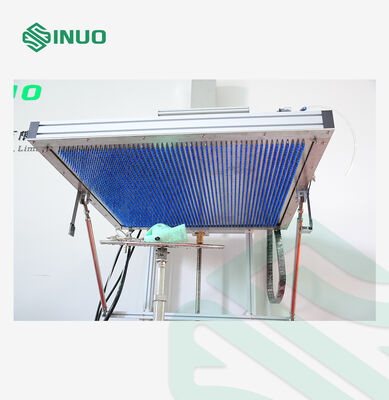

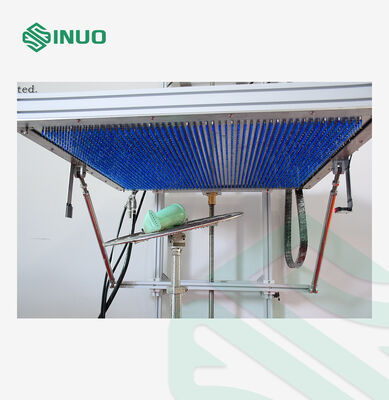

This testing equipment evaluates protection against vertically falling water droplets. Designed and built in compliance with IEC60529 standards for IPX1 and IPX2 water protection testing.

Compliance Standards

This testing equipment is used to evaluate protection against vertically falling water. It is designed and built in compliance with the standard requirements of IEC60529 for IPX1 and IPX2.

Product Overview

Vertical movement of the drip box is motor-driven
Electrical control cabinet equipped with PLC and touchscreen interface
Fine stainless steel filter for debris filtration
Utilizes compressed air (provided by user) to clear water from needles, preventing blockage
Stainless steel standard medical needle nozzles, readily available and corrosion-resistant
Needle nozzles feature tapered connections for tool-free replacement

Technical Parameters

Item	Specifications
Power supply of this equipment	Three phase AC380V, 50Hz, 4KW
Power supply for test sample	Single phase AC220V, 16A
LWGYD-4 flow rate Sensors	Flow range: 0.667-4.167 L/min, pulse output
Small water pump	Brand: South, model no.: CHL2-40, 380VAC, 50Hz, 0.55kw Protection class: IP55 Insulation class: F
Waterproof test range	IPX1 test, IPX2 test, IPX1/IPX2 custom
IPX1-IPX2	Drip area: 1000*1000mm Diameter of drip hole: 0.4mm Distance between holes: 20mm Test flow: 1~1.5mm/min (IPX1), 3~3.5mm/min (IPX2)
Test time	Set according to test standard (range 1-9999 seconds)
Water dripping height	200mm (automatically controlled by test equipment)
Water Drainage	Automatically empties tank water after test completion, requires 0.6MPa compressed air source (provided by user)
Equipment body material	Industrial aluminum alloy
Installation method	Wall Mount
Turntable	1-5r/min, adjustable
Control	PLC & 7" touch screen
