| الاسم التجاري: | Sinuo |
| رقم الطراز: | SN448-3A |
| الـ MOQ: | 1 |
| السعر: | Customized |
| شروط الدفع: | تي/تي |
| القدرة على التوريد: | 20 مجموعة / شهر |
| Item | Parameters |
|---|---|
| Power Supply | AC380V 50Hz, 15 kW, with leakage protection air switch |
| Sample Size | Standard: 900*900*2400 mm |
| Test Standard | IEC60529-2013, IPX4 rain test |
| Nozzle Parameters | Outer diameter: Ф102 mm Spherical cap diameter: SФ75.5 mm Center hole: 1 Inner two rings: 24 holes, 30° spacing Outer four rings: 96 holes, 15° spacing Total holes: 121 Hole diameter: Ф0.5 mm Material: Brass |
| Flow Rate | 10 L/min ±5% per nozzle, monitored by flowmeter, total flow rate settable via touchscreen |
| Rainfall Distance | Minimum distance from nozzle to sample: 0.3–0.5 m (per standard) |
| Spray Direction | Nozzle angle manually adjustable to match sample surface |

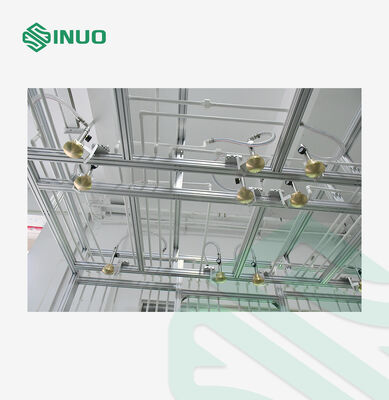

| Nozzle Mounting | Nozzles arranged on top of chamber, tilted 45° downward (adjustable), 6 rows * 4 columns |
| Pressure Gauge | 0–1 MPa, displayable |
| Test Duration | 0.01 s – 99.9 min, programmable |
| Water Supply System | Spraying water supplied from tank via branded pump with water circulation system (constructed by user) |
| Control System | Mitsubishi PLC, touchscreen interface, flowmeter display with manual and automatic operation modes |
| Leakage Recording | Manual inspection |
| Sample Handling | Sample loaded/unloaded via forklift |
| Safety Protection | Phase sequence protection, leakage protection, short circuit protection, abnormal operation protection |
