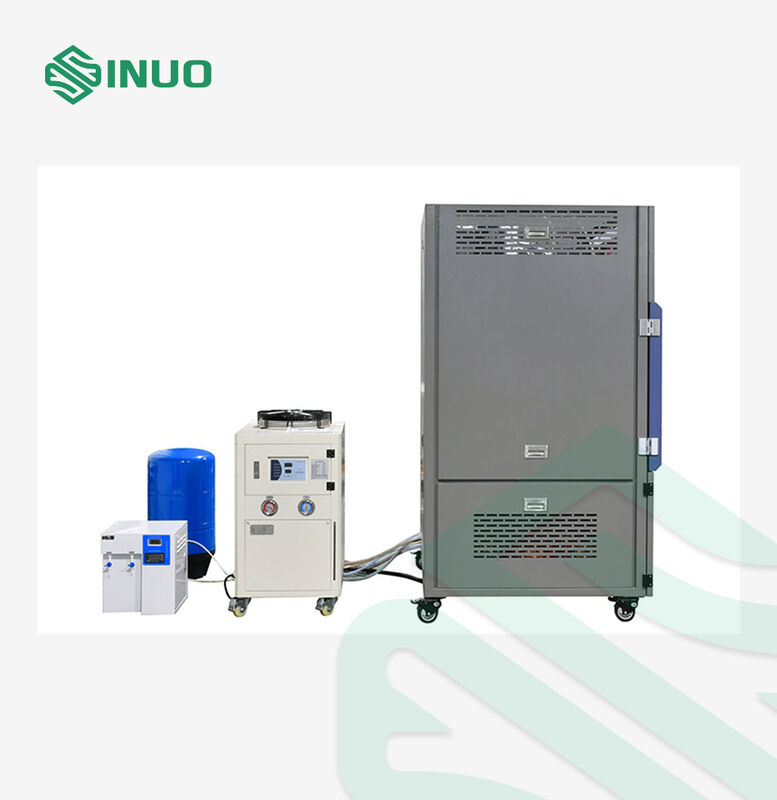

Xenon Arc Weathering Test Chamber Water-Cooled Xenon Test Chamber
Complied Standards & Clauses
This water-cooling xenon weathering test chamber conforms to multiple test methods such as AE J2412, SAE J2527, ASTMG 155ISO 105-B02, ISO 105-B04, ISO 105-B06, ISO 4892-2-A, ISO 11341-1, etc.
Equipment Overview
The Xenon Arc Weathering Test Chamber is an advanced environmental testing solution designed to simulate natural sunlight and weather conditions for accelerated aging and durability testing. Using a long-arc water-cooled xenon lamp as the light source, the chamber replicates UV radiation, condensation, rain, and temperature cycles, providing a controlled environment to evaluate material weather resistance.
Widely applied in industries such as automotive materials, plastics, coatings, inks, textiles, electronics, packaging, and electrical appliances, this chamber helps manufacturers select new materials, optimize existing ones, and ensure product longevity under real-world conditions. Weathering tests performed in this chamber are essential for quality control, research and development, and compliance with industry standards.
Technical Parameters
| Model | SN883- X65 |
| Dimensions | 124cm×114cm×202cm (W×D×H) |
| Temperature in the chamber | 38℃～80℃ |
| Sample temperature |
Blackboard temperature: 40℃～110℃ Black mark temperature:40℃～120℃ |
| Light source | 6.5kW long arc water-cooled xenon lamp (imported from the United States Q-LAB) |
| Irradiance range |
0.3W/m2～1.1 W/m2(@340nm) 40 W/m2～120 W/m2(@300nm～400nm) |
| Irradiance display band | 340nm, 420nm, 300～400nm optional |
| Light source life |
About 2000h (based on irradiance 0.51W/m2 @340nm) |
| Exposure area | 6500cm2/ About 65 standard samples (140mm×70mm) |
| Environment humidity | 10%RH～85%RH |
| Water source | Tap water: 0.14～0.3 MPa Laboratory secondary water: 0.08～0.15 MPa Laboratory secondary water consumption: about 150 L/day |
| Power source | AC 208V, 60Hz, three-phase five-wire (including ground wire) |
| Ambient temperature | 18℃～28℃ |
| Environmental conditions | Indoor, clean, less dust, flat ground, there is no corrosive, flammable, explosive gas, liquid, dust around |
| Drain | The height of the drain from the ground: ≤15cm Drain interface diameter: ≥5cm |
| Installation space | ≥280cm×300cm×280cm (W×D×H) |
| Standard configuration and random accessories | |
| Standard configuration |
Host 1 Set Q-LAB 6.5kW xenon lamp 1 PC Simulated outdoor daylight filter set 1 set Irradiance calibrator 1 set Pure water machine 1 set Chiller 1 set |
Detail
