| الاسم التجاري: | Sinuo |
| رقم الطراز: | SNB02C-50KN |
| الـ MOQ: | 1 |
| السعر: | Customized |
| شروط الدفع: | تي/تي |
| القدرة على التوريد: | 1 مجموعة / شهر |
Computer-Controlled Material Testing System for Tensile, Compression & Bending
Equipment Overview

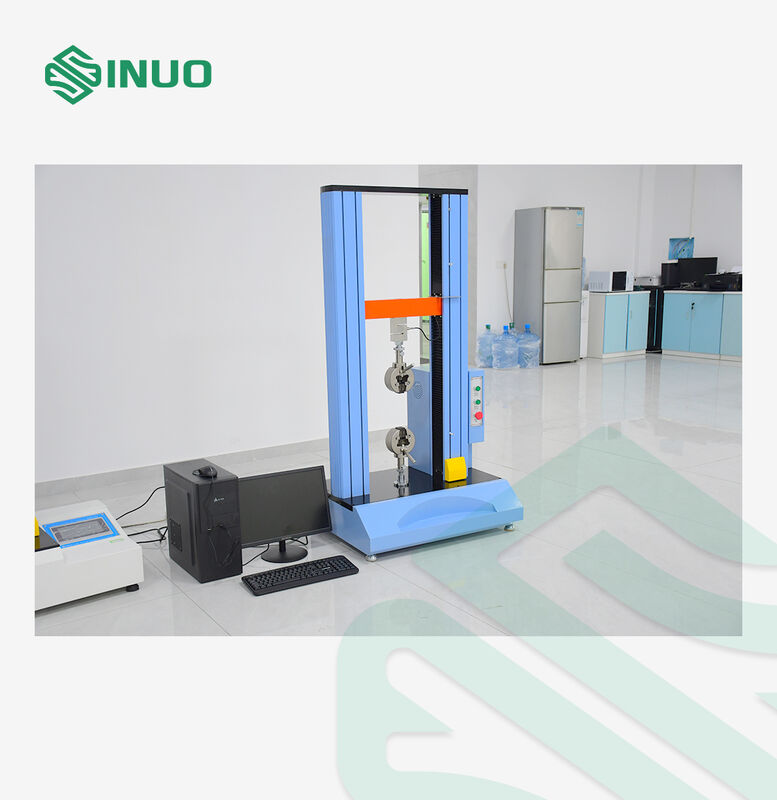

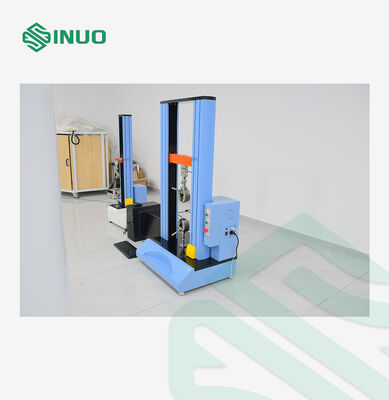

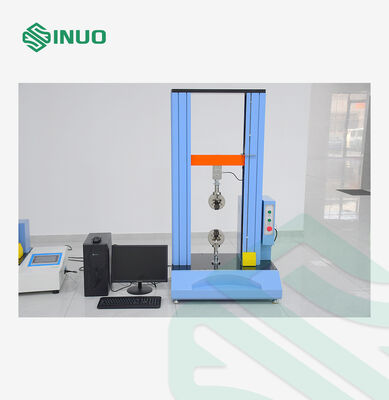

Our Servo Universal Testing Machine is a high-precision, computer-controlled system designed for evaluating the mechanical properties of a wide range of materials, including rubber, plastics, metals, cables, textiles, nonwovens, foils, and sheets. Ideal for both raw materials and finished products, it supports tensile, compression, peel, shear, tear, and bending tests with exceptional accuracy and reliability.
Equipped with modular grips and interchangeable fixtures, this versatile testing machine can be customized to meet diverse testing requirements in quality control, R&D, and material certification. Its servo-driven design ensures stable low-speed operation, fast dynamic response, and high overload capacity, eliminating the limitations of conventional stepper motors.
With intuitive operation, multi-data output, and graphical comparison capabilities, the system streamlines data analysis, allowing engineers and technicians to make informed decisions quickly. Whether you are conducting material performance evaluations or product development tests, this universal testing machine is an essential tool for enhancing efficiency and precision in your laboratory.
Technical Parameters
|
No |
Specification |
Details |
|---|---|---|
| 1 | Test Force Range | 0–5000 kg |
| 2 | Force Measurement Display Accuracy | 0.001 kg |
| 3 | Unit Conversion | kg, N, lb |
| 4 | Load Resolution | 1/250,000 |
| 5 | Load Accuracy | ±0.5% |
| 6 | Displacement Unit | mm, cm, in |
| 7 | Displacement Measurement Display Accuracy | 0.01 mm |
| 8 | Test Stroke | 800 mm |
| 9 | Effective Test Width | 400 mm |
| 10 | Speed Range | 0.01–500 mm/min, stepless adjustment |
| 11 | Transmission System | Servo motor, Taiwan ZPT ball screw, TM2101 computer software |
| 12 | Safety Devices | Overload emergency stop, upper/lower stroke limit, automatic breakpoint stop |

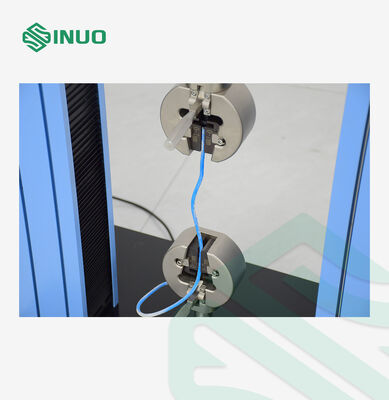

| 13 | Fixtures | Custom wedge-type fixture set for customer products (with 4 pairs of jaws: 0–7 mm, 7–14 mm, 14–21 mm, 21–26 mm) |
| 14 | Accessories | Includes one desktop computer |
| 15 | Operation Mode | Computer-controlled, Windows platform; clear hierarchical operation with detailed help and prompts for easy use |

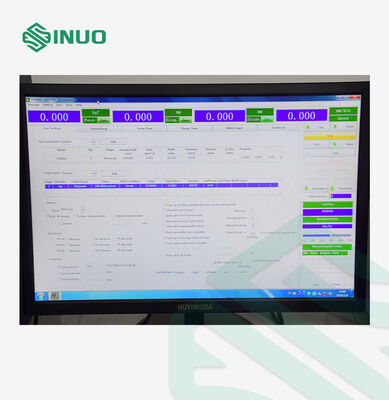

| 16 | Software Features | Multi-thread parallel processing; real-time display of force-displacement, force-time, displacement-time, stress-strain curves; switchable views; Microsoft Word report format for easy, customizable reporting |
| 17 | Machine Dimensions | Approx. 800 × 550 × 1950 mm |
| 18 | Power Supply | 220V / 50Hz |
| 19 | Power | 1.0 kW |
| 20 | Total Weight | Approx. 150 kg |
