| الاسم التجاري: | Sinuo |
| رقم الطراز: | SN8811 |
| الـ MOQ: | 1 |
| السعر: | Customized |
| شروط الدفع: | تي/تي |
| القدرة على التوريد: | 20 مجموعة/شهر |

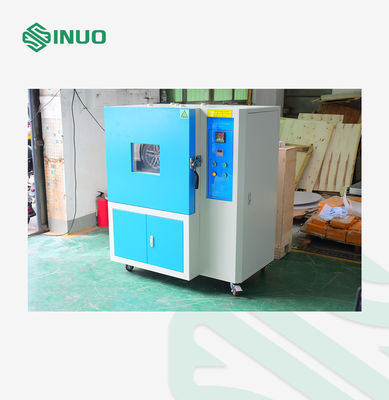

Oven Circulation Chamber Environmental Aging Test Chamber IEC 60811
Complied Standards & Clauses
Conform to testing norms: IEC 60811, etc.
Equipment Overview
This tester is designed to test the aging resistance specially for rubber, plastic and some insulator materials. Different from normal aging oven, this tester has:
1.Temperature constancy
2.Temperature uniformity
3.Heat–up speed after door open
4.Wind speed &air exchange rate of testing chamber
5.Seal of heat-isolation of testing chamber
6.Special adjusting apparatus of air exchange
Technical Parameters
| Test chamber interior size | 50X50X45cm |
| Temperature range | RT+10℃ to 300℃ |
| Electricity | 2.5kw |
| Temperature fluctuation | 0.5%(By maximum temperature computation) |
| Temperature uniformity | 1%(By maximum temperature computation) |
| Temperature elevation time | 60 Minutes(RT to 200℃) |
| Air Exchange Rate | 8-20 times/hours |
| Dimension(W×D×H) | 91×55×99cm |
| Weight | 70KG |
| Power | 1∮,220V,12A |
Details
