| الاسم التجاري: | Sinuo |
| رقم الطراز: | SN553-EV250H80VT80VCS-2 |
| الـ MOQ: | 1 |
| شروط الدفع: | ر/ر |
| القدرة على التوريد: | 10 مجموعات في الشهر |
Electromagnetic Vibration Tester Automotive & Electronics Testing
Complied Standards & Clauses
Sinuo can provide you with the whole excitation and testing scheme, and prove the quality of the products for you according to national and international standards, such as GB, GJB, UL, JIS, DIN, ISO, BS, MIL, IEC and ASTM,IEC62133 UN38.3 UL2054 IEC 60086 ECE R100., etc.
Product Overview

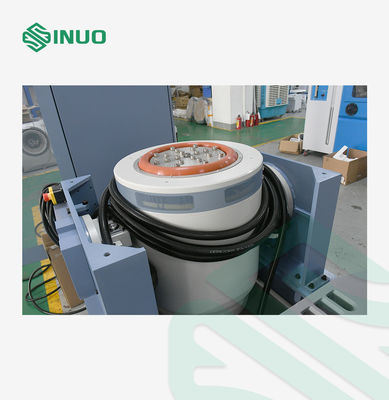

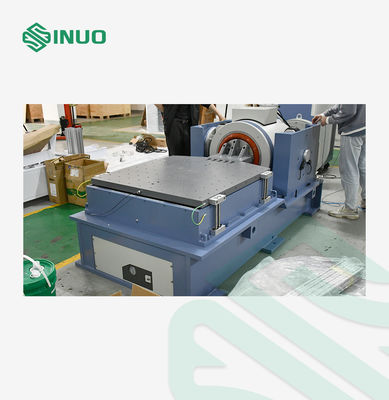

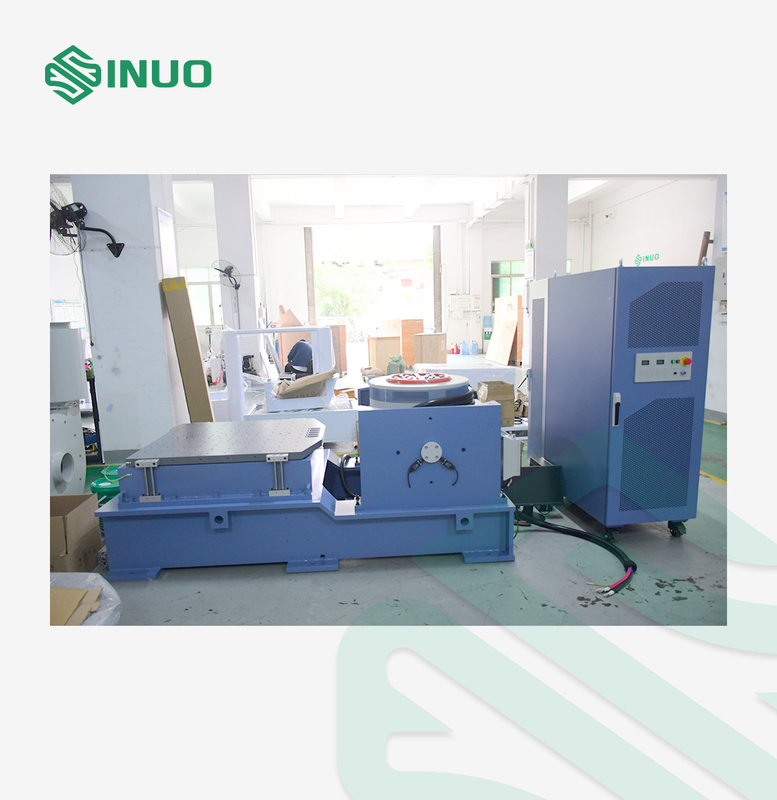

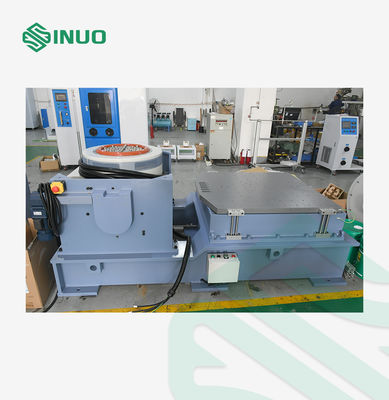

The SN553-EV250H80VT80VCS-2 Electromagnetic Vibration Testing Machine is a high-precision device designed to simulate real-world vibration conditions for components and products. It ensures reliable performance testing under various vibration frequencies and amplitudes, making it ideal for automotive, aerospace, electronics, and industrial applications.
Key Features:
Wide frequency and amplitude range for versatile testing
Advanced electromagnetic drive for precise vibration control
User-friendly interface with programmable test profiles
Durable construction for long-term, stable operation
Ensure your products meet the highest reliability standards with this cutting-edge vibration testing solution.
Technical Parameters
| A11S24 electromagnetic excitation generator parameters | |
| Maximum sinusoidal excitation force | 5000Kg.f peak(49KN) |
| Maximum Random Exciting Force | 5000Kg.f r.ms(49KN) |
| Maximum impact excitation force | 10000Kg.f peak(98KN) |
| Frequency Range | 1～2700 Hz |
| Maximum displacement | 51 mm p-p |
| Maximum speed | 2.0m/s |
| Maximum acceleration | 100G(980 m/s2) |
| First-order resonant frequency | 2500 Hz±5% |
| Payload | 1000 kg |
| Vibration isolation frequency | 2.5 Hz |
| Moving coil diameter | Ф440 mm |
| Moving coil weight | 50kg |
| Flux leakage | ＜1mST(10gauss) |
| Allowable eccentric moment | ＞500N.m |
| Equipment size | 1600mm×1180mm×1280mm (excluding vertical expansion platform) |
| Equipment weight | 4800 kg |
| LA50K digital switching power amplifier | |
| Output power | 50KVA |
| Output voltage | 110Vrms |
| Output current | 550Arms |
| Conversion efficiency | ＞90% |
| SNR | ≥65dB |
| Amplifier size | 910mm×620mm×2000mm |
| Servo protection system | |
| Function | Temperature, wind pressure, over-displacement, over-voltage, over-current, input under-voltage, external fault, control power supply, logic fault, input phase loss |
| Digital vibration controller VCS-2 | |
| Hardware configuration |
2 simultaneous input channels, 1 output channel (The controller can be configured with 2, 4, or 8 input channels; prices vary depending on the configuration.) |
| Control function module | Sine, random, classical shock |
| Control computer | Original brand computer with LCD monitor |
| Software | English operation, time domain and frequency domain analysis, signal source, sine frequency sweep analysis, etc. It can automatically generate WORD test reports. It can display, store the signals and data, and set test parameters and analyze functions. |
| Acceleration sensor LTE C04A07 |
Frequency range: 1—7000Hz Sensitivity: 30mv/g Temperature range: -40 - 160℃ |
Details
