| الاسم التجاري: | Sinuo |
| رقم الطراز: | SN441-500L |
| الـ MOQ: | 1 |
| شروط الدفع: | ر/ر |
| القدرة على التوريد: | 10 مجموعات في الشهر |

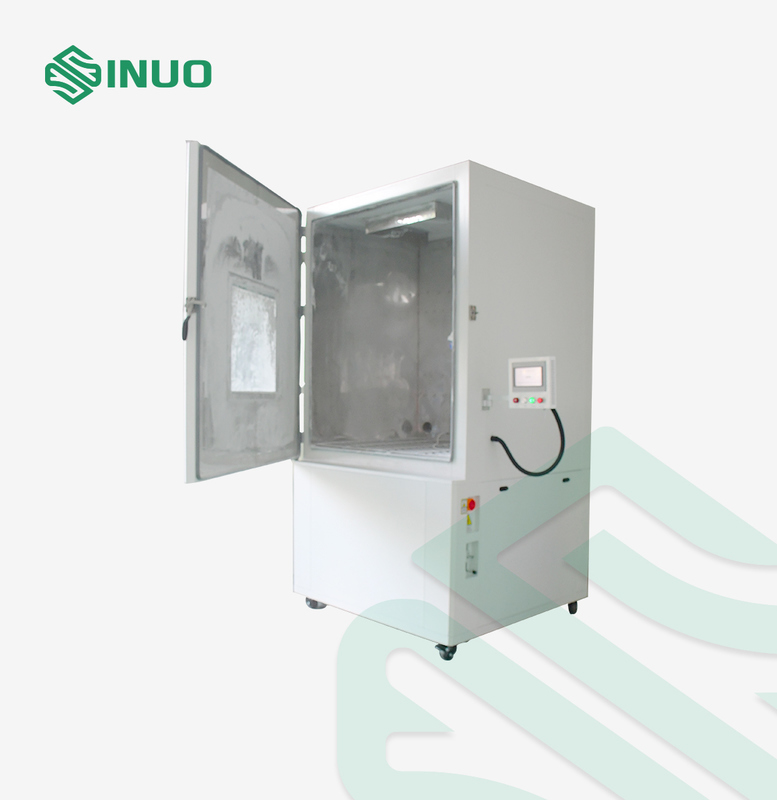

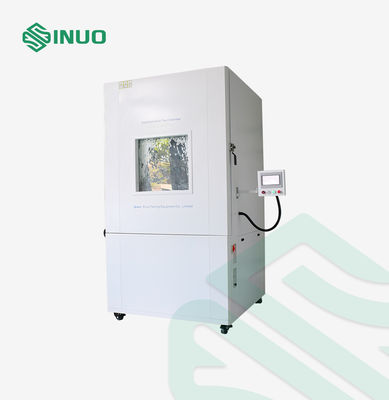

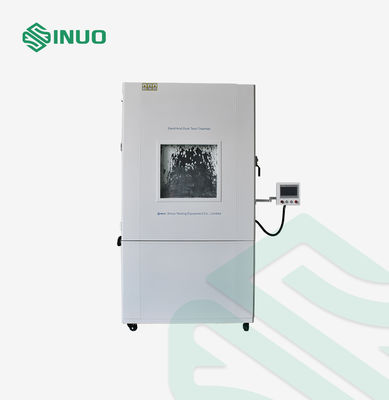

500L IP5X and IP6X Dustproof Test Chamber for Automotive Parts IEC60529
Complied Standards & Clauses
The sand and dust test chamber is designed and manufactured according to IEC60529 Fig 2 IP5X and IP6X, IEC60598-1-2008, IEC60335-1 Clause 22.1 and etc.
Product Overview
The Sand and Dust Test Chamber is designed to evaluate the protection performance of electrical and electronic products, automotive and motorcycle components, and sealing parts against the intrusion of sand and dust under simulated environmental conditions. It reproduces the effects of dust-laden air caused by natural weather conditions or artificial disturbances such as vehicle movement.
This chamber helps determine the potential impact of airborne particles on the functionality and durability of electrical and mechanical products during operation, storage, or transportation in dusty environments.
The equipment is precisely engineered and manufactured in compliance with IEC 60529 (Figure 2) IP5X and IP6X, IEC 60598-1:2008, IEC 60335-1 Clause 22.1, and other related international standards, ensuring accurate, reliable, and repeatable test results.
Technical Parameters
|
Item |
Specification |
|---|---|
| Inner Chamber Size (W×D×H) | 800 × 800 × 800 mm |
| Outer Chamber Size (W×D×H) | 1250 × 1050 × 2000 mm |
| Dust Type | Fine dust ≤ 75 μm, Coarse dust ≤ 150 μm |
| Dust Concentration | 2 kg/m³ |
| Talcum Powder Dosage | 2–5 kg/m³ |
| Air Flow Velocity | ≤ 2 m/s |
| Dust Flow Direction | Top to bottom |
| Power Supply | AC380V, 50Hz, 3-phase (32A air switch required) |
| Power Consumption | 3KW (no load) |

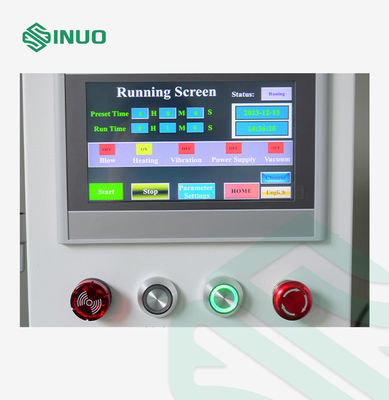

| Control System | PLC + Touchscreen (Teelong) |
| Test Time Settings | 1 s ~ 99 h (adjustable) |
| Cycle Time | 1 s ~ 99 h (adjustable) |
| Vacuum Time | 1 s ~ 99 h (adjustable) |
| Shock Time | 1 s ~ 99 h (adjustable) |
| Air Flow Meter Range | 1–20 L/min |
| Negative Pressure Range | Adjustable from -10 kPa to 0 kPa |
| Lighting | 1 pc |
| Dustproof Socket | AC220V 16A |

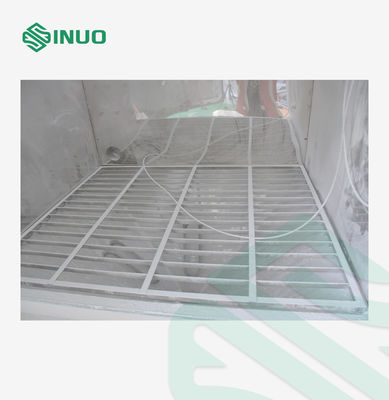

| Inner Chamber Material | SUS201 Stainless Steel Mirror Panel |
| Outer Chamber Material | Electrostatic Sprayed A3 Steel |
| Vacuum System | Pressure regulator, pump, nozzle, tubes |
| Heating System | Stainless steel mica heating sleeve |
| Sample Load Capacity | 10 kg |
| Observation Window | 1 pc |
| Dust Baking Temperature | RT +10℃ ~ 60℃ |
| Safety Protections |
Phase protection, leakage, over-temperature
|
Details
