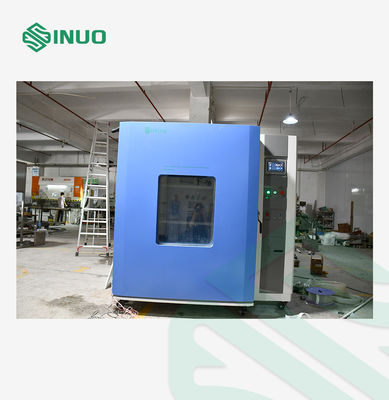

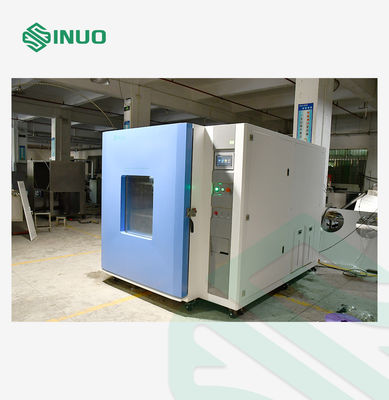

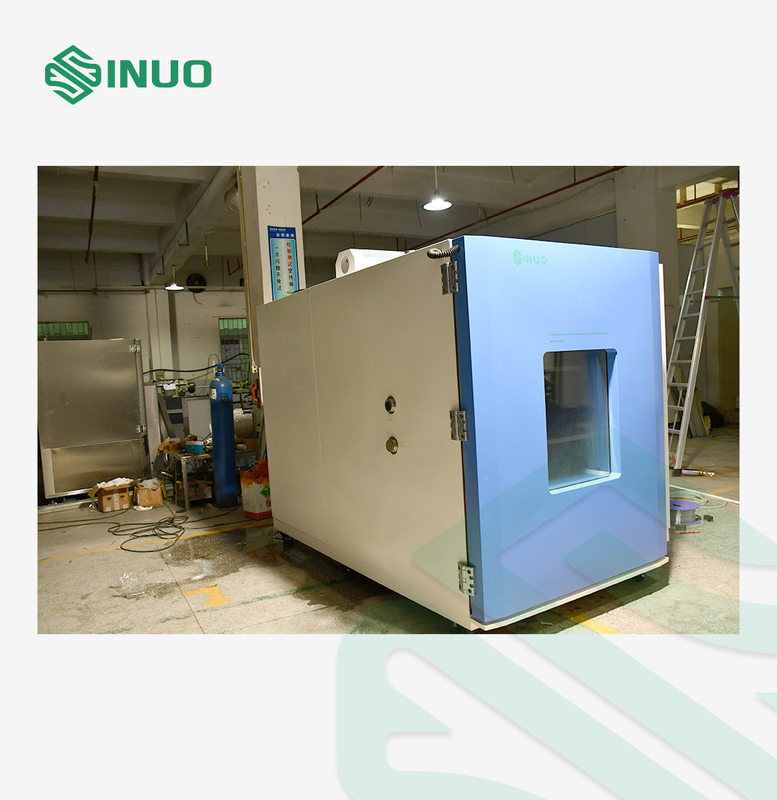

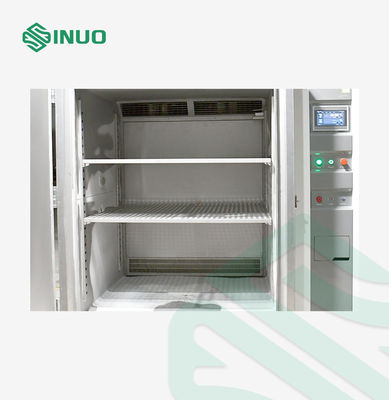

Temperature Humidity Chamber High and Low Temperature Test Equipment 960L
Complied Standards & Clauses
It conforms to standards:
IEC60068-2-1:2007 “Environmental Testing-Part 2-1: Tests-Test A: Cold, IDT”
IEC60068-2-2:2007 “Environmental Testing-Part 2-1: Tests- Test B-Dry heat, IDT”
IEC60068-2-78:2012 “Environmental Testing-Part 2-78: Tests-Test Cab: Damp heat, steady state, IDT”
IEC60068-2-30:2005 “Environmental Testing-Part 2-30: Tests-Test Db: Damp heat, cyclic (12h+12h cycle), IDT”
Product Overview
This environmental test chamber is designed to simulate extreme climatic conditions, including cold, heat, humidity, and dryness. It is widely applied to raw materials and finished products such as electronics, electrical appliances, plastics, and other components. By subjecting products to alternating high and low temperatures as well as humidity cycles, the chamber helps evaluate and ensure product reliability during storage, transportation, and actual use.
Technical Parameters
| Technical Parameters | ||
| Control & Operation | PLC and touch screen intelligent control system | |
|
Chamber Size
|
Inner Size (mm) | External Size (mm) |
| 2000*600*800 | 2250*1650*1820 | |
| Temperature Range | -20°C ~+150°C | |
| Humidity Range |
20%～98%RH
|
|
| Temperature fluctuation | ±0.5℃ | |
| Humidity fluctuation | ≤2.5% | |
| Temperature deviation | ≤±2.0℃ | |
| Humidity Deviation | ≤±3% | |
| Heating Rate | ≧2-3°C/min | |
| Cooling Rate | ≧1°C/min, average no load | |
| Load condition | None | |
| Working noise |
A sound level≤70dB(A) (Measured in a soundproof room with an ambient temperature of 25°C and low echo. Using A weighting, test the average of 9 points. Each test point is 1 meter away from the noise source horizontally and 1 meter above the ground.) |
|
| Temperature and Humidity Range Scheme | |
|
