| الاسم التجاري: | Sinuo |
| رقم الطراز: | SN4410 |
| الـ MOQ: | 1 |
| السعر: | Customized |
| شروط الدفع: | ر/ر |
| القدرة على التوريد: | 30 مجموعة/شهر |
IEC60529 IPX7 Waterproof Immersion Test Equipment Soaking Immersion Test System
Complied Standards & Clauses
IEC 60529 degree of protection provided by enclosures (IP Code) of the IPX7, IEC60884-1, IEC60598-1.
Equipment Overview
This equipment is designed for IPX7 waterproof testing, specifically simulating immersion conditions to evaluate the water resistance of products. By performing the test, it verifies whether the waterproof level of the product meets the required standards. It is widely applied in product development, design validation, quality assurance, and factory inspection, ensuring reliable performance and compliance with international safety regulations.
Technical Parameters
| Test content | IPX7 |
| Power supply | AC 220V,50Hz, 1KW |
| Max. test water depth | 1.8m |
| External chamber material | Stainless steel plates + Aluminum profile frame |
| Observation window width | 200mm |
| Chamber external size | Approximately W 1080* D 1080*H 2300mm (including casters) |
| Chamber inner size | Length 1000* W 1000* H1800mm |
| Water level adjustment method | Water inlet / drain valve, manual adjustment |
| Water level display | Scale (accuracy 1mm) |
| Test time | 0.01 second-99.99hours can be preset |
| Inner chamber material | 2.0mm thickness stainless steel |
| Electric lifting basket | Made of stainless steel, controlled by electric hoist |

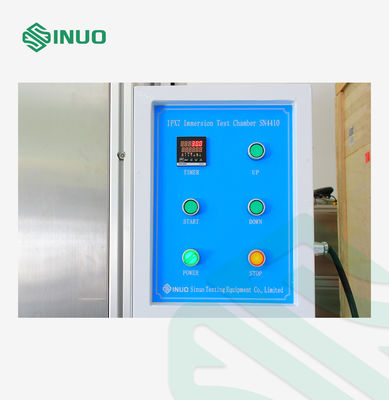

| Control method | Buttons (non-PLC) |
| Immersion depth requirements |
The lowest point of enclosure with a height less than 850 mm is located 1000mm below the surface of the water The highest point of enclosure with a height equal to or greater than 850mm is located 150mm below the surface of the water |
| Observation window | Tempered glass (thickness: 12mm) |

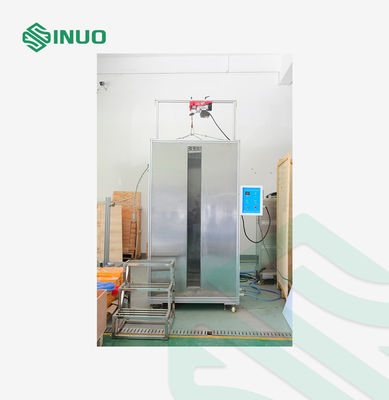

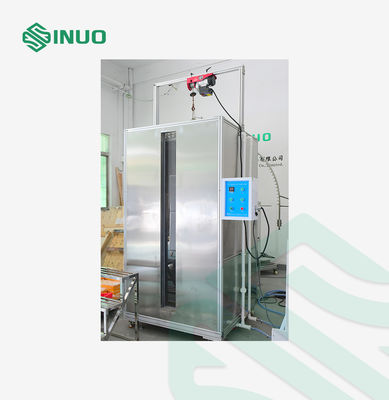

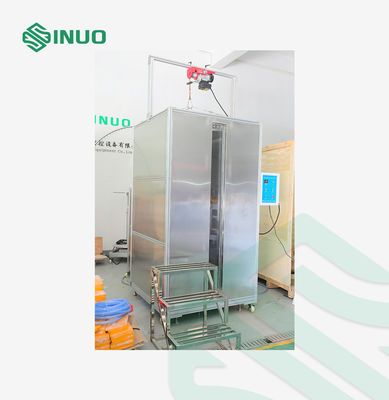

Details
