| الاسم التجاري: | Sinuo |
| رقم الطراز: | SN4418 |
| الـ MOQ: | 1 |
| السعر: | Customized |
| شروط الدفع: | ر/ر |
| القدرة على التوريد: | 30 مجموعة/شهر |

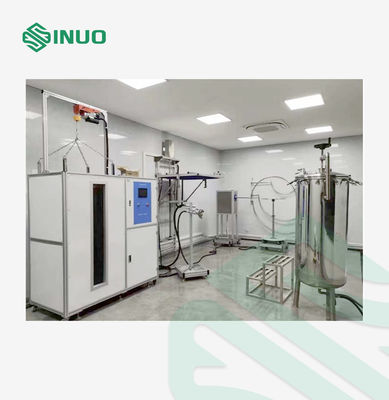

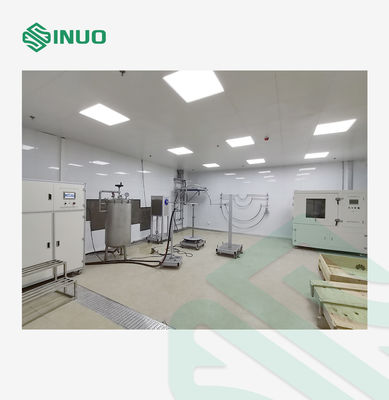

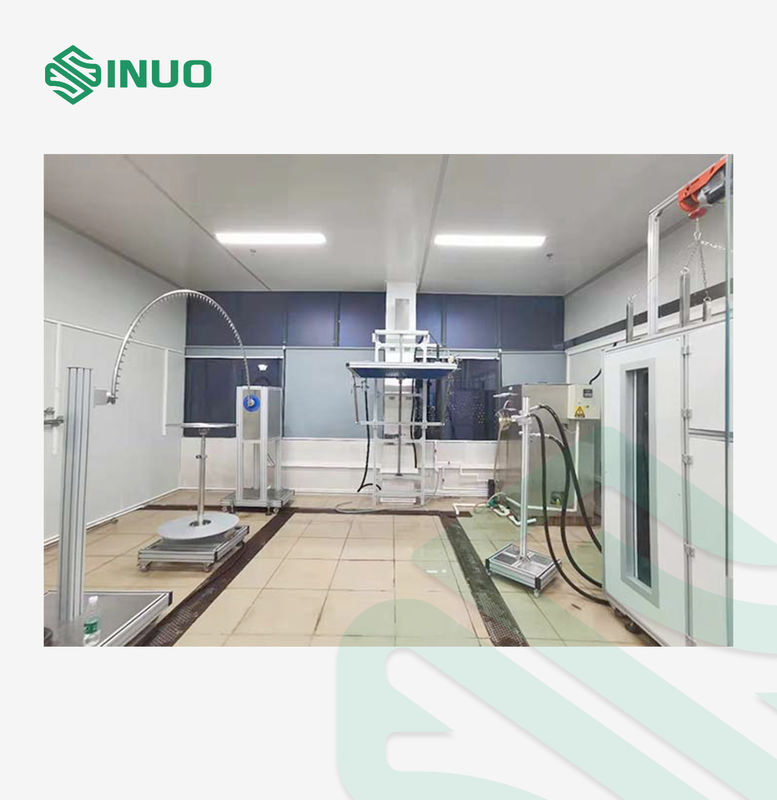

IPX1~8 Waterproof Test System IEC 60529 Waterproof Testing Equipment
Complied Standards & Clauses
This IPX1~8 waterproof test system conforms to IEC 60529:2013, etc.
Equipment Overview
This test device is to verify Protection against Vertically Falling Water Drops. It is designed and manufactured in accordance with the standard requirement of IEC60529 IPX1 and IPX2.
1. The rise and fall of the drip box is controlled by the motor.
2. Stainless steel fine filter for dirt filtration.
3. Adopts compressed air to blow the needle water, to prevent water reactive substances and atmospheric blocking needle.
4. Stainless steel general medical needle nozzle, easy to buy, not easy to rust.
5. Needle nozzle and needle nozzle seat using taper connection, can be easily replaced without the tool, individual damage to the needle nozzle can be easily replaced quickly.

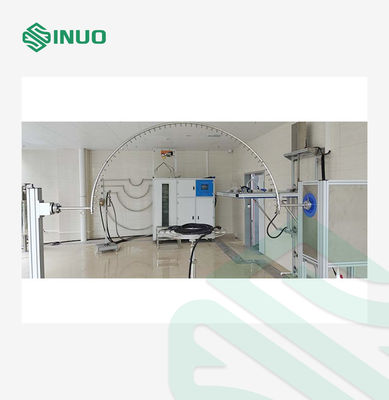

Oscillating tube tester is designed and manufactured in accordance with the standard requirement of IEC60529 IPX3 and IPX4.
The oscillating tube part of this device is controlled by adjustable-speed motor and crank-link mechanism. This device is reciprocating swing from the place of ±60°to another one of ±175°with the speed required by the standard through machine adjusting angle.
The angle adjustment is accurate. The structure is stable and durable. It cooperates with turntable through which the rotating of 90°can be achieved.
The spray nozzle is designed and manufactured in accordance with IEC60529 IPX3 and IPX4. Some parts of the enclosure cannot be wet by the oscillating tube. Under this circumstance, the handheld spray nozzle is used by manual.
The difference between IPX3 and IPX4 is that the baffle should be removed in the IPX4 test.
Technical Parameters
| Application | Applies to conduct IPX1, IPX2 testing. |
| Rain area | 1000mmX1000mm |
| Tank material | Stainless steel |
| Dripping aperture | ￠0.4mm |
| Hole distance | 20mm |
| Rainfall Flow | 1mm/Min, 3mm/Min, user-set parameters (error: + 0.5mm / min). |
| Water dripping height | 200mm (automatically control by the test equipment) |
| Test time | 10Min, can be set according to the need |
| Draining | Automatically emptying the tank water after the test is completed |
| Body material | Industrial aluminum alloy |
| Dimensions (LxDxH) | 1100X1200X2800mm |
| Machine structure | Wall Mount |
| Air compressor | Silent air compressor |
| No. | Item | parameters |
| 1 | Water supply |
Water flow rate＞10L/min±5% clean water without inclusion. This device is equipped with clean water filtration unit |
| 2 | The size of the oscillating tube | Standard coming with R200mm, R400mm, R600mm, R800mm, R1000mm R1200mm, R1400mm, R1600mm oscillating tubes, made of stainless steel |
| 3 | Needle hole | Φ0.4mm |
| 4 | Included angle of two holes | IPX3:120°; IPX4:180° |
| 5 | Oscillating tube swing angle |
Max. ±175° can be preset (Note: standard requires IPX3:120°; IPX4:360°, but due to there is turntable under oscillating tube during test, so 360° cannot achieved during actual testing, if without turntable, then 360° can be achieved) |
| 6 | Raining speed |
IPX3: 4s/time (2×120°); IPX4: 12s/time (2×360°); |
| 7 | Water flow | Can be set according to the size of the pendulum and the number of the pin holes (0.07 L/min per hole) |
| 8 | Testing time | 0.01S～99 hours 59mins,can be preset |
| 9 | Pressure gauge | 0~0.25MPa |
| 10 | Site requirements |
Dedicated IP waterproof test room, the ground should be flat with illumination 10A waterproof leakage switch (or socket) used for equipment. With good function of inflow and drainage. Ground installation |
| 11 | The area | According to the oscillating tube chose |
Details
