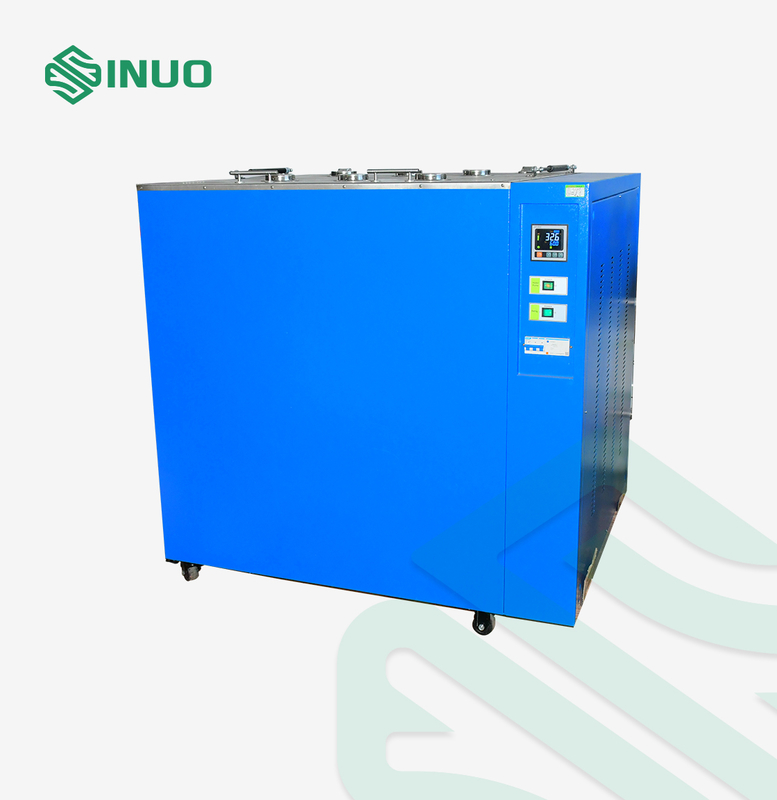

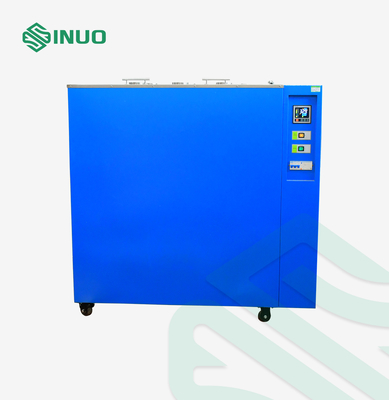

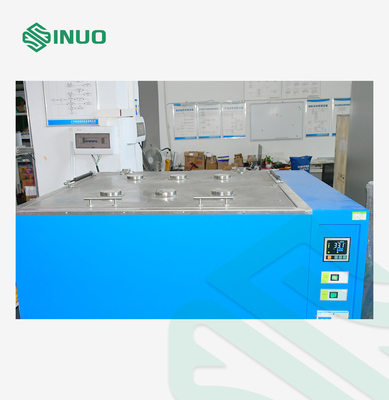

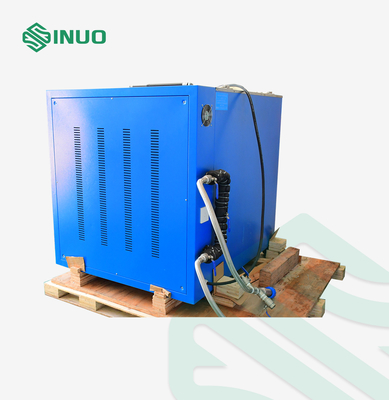

IEC 62196-1 Constant Temperature Water Bath for EV Connector Testing
Complied Standards & Clauses
This constant water bath is required by IEC 62196-1:2022 clause 30.
Equipment Overview

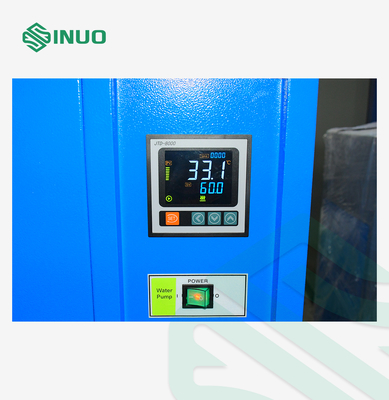

It adopts stainless steel inner liner, and advanced digital display temperature control method. The water is stirred at the bottom of the liner to ensure that the water temperature is even up and down.
Technical Parameters
| Inner size | 1000mm*1000mm*1000mm |
| Input voltage | Three phase380V, 50/60Hz |
| Max. power | 5KW |
| Constant temperature range |
Room temperatur~20°C Heating: Room temperature~20°C Cooling: Room temperature~20°C The required temperature is set, the water bath will achieve to the set value automatically. |
| Temperature error | ±2°C |
| Chamber liner material | 2mm 304 stainless steel |
Details
