| الاسم التجاري: | Sinuo |
| رقم الطراز: | SN4421 |
| الـ MOQ: | 1 |
| السعر: | Customized |
| شروط الدفع: | ر/ر |
| القدرة على التوريد: | 30 مجموعة / شهر |

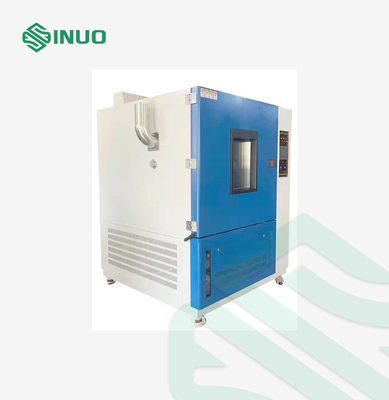

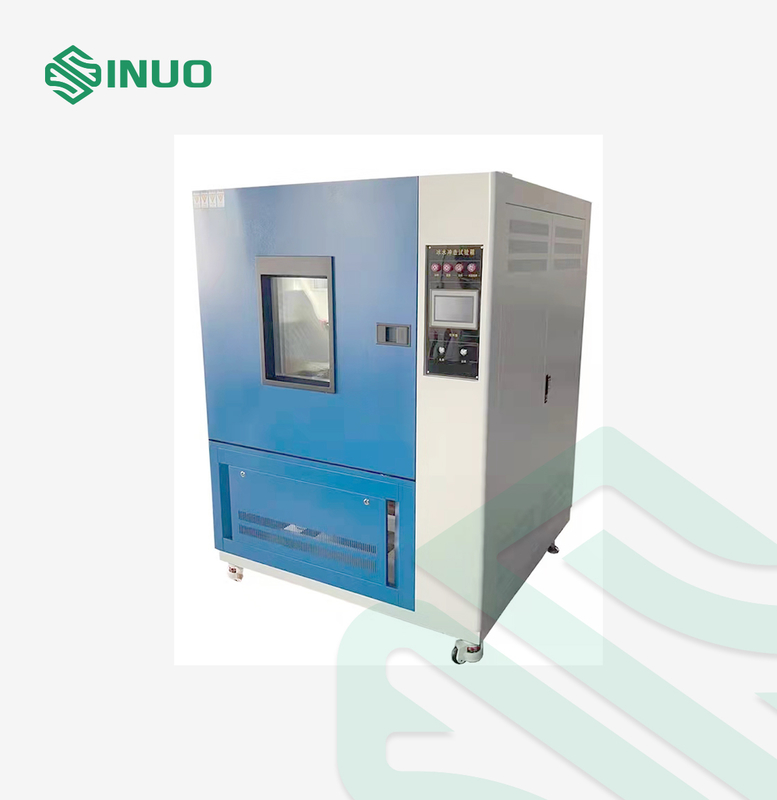

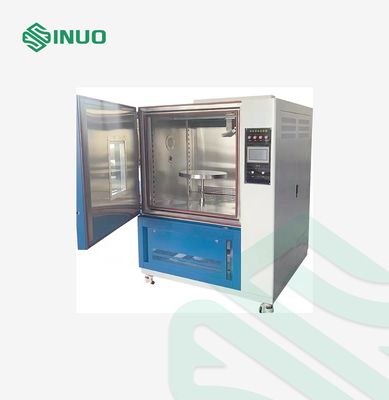

ISO 16750-4 Thermal Shock with Splash Water and Submersion Test Equipment
Complied Standards & Clauses
It can meet the national standard ISO 16750-4: 2006 Road vehicles Environmental conditions and tests for electrical and electronic equipment Part 4: Climatic loads 5.4.2 water splash test and 5.4.3 immersion test.
Equipment Overview
This product is suitable for products that may be exposed to water at different ambient temperatures during transportation, storage or use. The water comes from heavy rain, wind and rain, sprinkler system, wheel splashing, flushing or violent waves, etc. Under this condition, the product performance indicators and quality management are tested.
Technical Parameters
| Maximum size of the buyer's sample | 450×450×500 (W*D*H), weight 80kg |
| High temperature box inner box size | 1000×1000×1000mm (W*D*H) |
| Immersion water tank size | 600×600×700 (W*D*H) |
| Basket size | 500×500×600 (W*D*H), The hanging basket can be raised and lowered electrically |
| Basket load bearing | 80kg |
| Equipment outer box size | About 1650×1800×2580mm(W*D*H)Subject to actual size |
| High temperature box temperature range | RT+10～150℃ |
| Temperature resolution | 0.1℃ |
| Temperature fluctuation | ±0.5℃ |
| Temperature uniformity | Within 2℃ |
| Temperature deviation | ±2℃ |
| Ice water splash test medium requirements (prepared by the buyer) | Medium requirements: Deionized water;(Note: Please bring your own pure water machine) |
| Ice water immersion test medium requirements (prepared by the buyer) | Medium requirements: deionized water |
Details:
