| الاسم التجاري: | Sinuo |
| رقم الطراز: | SN441-1800L |
| الـ MOQ: | 1 |
| شروط الدفع: | ر/ر |
| القدرة على التوريد: | 10 مجموعات في الشهر |

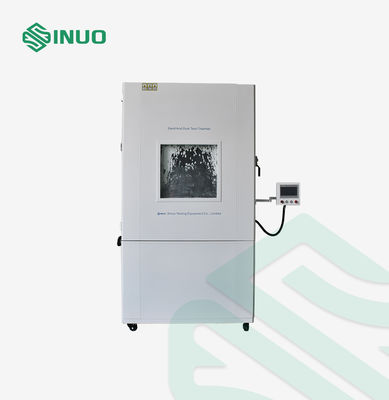

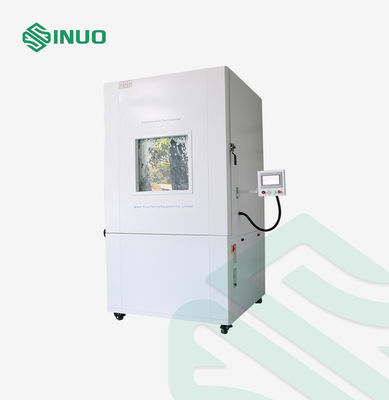

Sand and Dust Resistance Test Machine for Automotive Parts IEC 60529
Complied Standards & Clauses
The sand and dust test chamber is designed and manufactured according to IEC60529 clause 13.4 IP5X and IP6X, required by IEC60598-1-2008, IEC60335-1 Clause 22.1 and etc.
Product Overview
The test device is suitable for sealing parts and enclosure’s sand and dust resistance capacity testing of the electrical and electronic products, car and motorcycles spare parts and seals. In order to detect the use, storage, transport performance of the electrical and electronic products, car and motorcycles spare parts and seals under the sand and dust environment.
Design a conical funnel with a dust collection port at the bottom, and install a high-pressure turbine circulation fan suction port at the dust extraction port (bottom). The dust that is pumped up is sent to the top of the inner box and is freely sprinkled from top to bottom through the top of the box, thus starting the cycle over and over again.
Technical Parameters
| Model | SN441-1800L |
| Working size(mm) | W1200*D1000*H1500mm |
| Outer size (mm) |
W1450*D1950*H2800mm (the height is limited due to customer’s site limitation) |
| Baking dust temperature range | RT+10℃～60℃ |
| Fine dust | Below 75um |
| Coarse dust | Below 150um |
| Air flow speed | Not more than 2m/s |
| Dust concentration | 2kg/m³ |
| Talcum powder dosage | 2～5kgm³ |
| Blowing dust method | Top-down |
| Air flow meter | 1-20L/M |
| Metal mesh diameter | 50um |
| Nominal distance between lines | 75um or below 150um |
| Shock time | 1s～99h (adjustable) |
| Test time timing | 1s～99h (adjustable) |
| Dust blowing control cycle | 1s～99h (adjustable) |
| Vacuum time | 1s～99h (adjustable) |
| Controller control function | (1) The dust blowing time (stop, blow) h/m/s is adjustable; (2) The cycle period is arbitrarily adjustable; (3) The preset test time: 0s~999h99m99s is arbitrarily adjustable; (4) Power-on mode: off - on - off |
| Circulation fan | Closed alloy low-noise motor, multi-blade centrifugal fan |
| Load bearing | 200kg |
| Observation window | 1 pc |
| Flashlight | 1 pc |
| Control system test piece power socket | Dustproof socket AC220V 16A |
| Control system | PLC controller + touch screen |
