| الاسم التجاري: | Sinuo |
| رقم الطراز: | SN8810C-1m³ |
| الـ MOQ: | 1 |
| شروط الدفع: | T/T |
| القدرة على التوريد: | 10 مجموعات شهرياً |

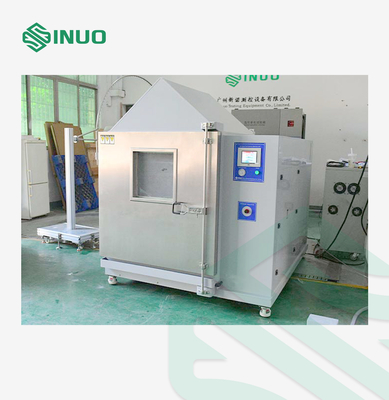

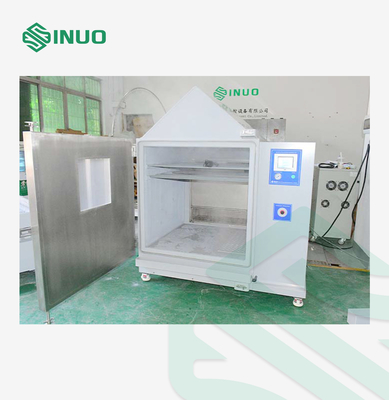

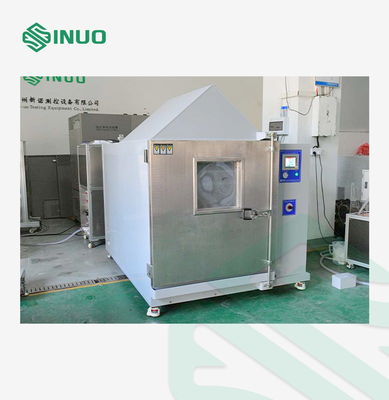

Compound Salt Spray Test Chamber Corrosion Test Equipment 1m³ Salt Fog Chamber
Complied Standards & Clauses
It can meet the national standard ISO 16750-4: 2006 Road vehicles Environmental conditions and tests for electrical and electronic equipment Part 4: Climatic loads clause 5.5 salt spray test.
Product Overview
Compound Salt Spray Test Chamber SN8810C-1m³ is an advanced corrosion testing system designed to simulate real-world environmental conditions that metallic materials are exposed to—especially in salt-contaminated outdoor atmospheres. It performs cyclic salt spray, dry, humid, and heat testing, offering a more realistic corrosion assessment than traditional NSS, AASS, or CASS tests. Ideal for automotive electronics, defense, and industrial component testing, this chamber ensures high accuracy, safety, and programmable control.
Technical Parameters
|
Item |
Specification |
|---|---|
| Model | SN8810C-1m³ |
| Internal Volume | 1 m³ |
| Chamber Size (W×D×H) | 1000×1000×1000 mm (effective), 600 mm roof height excluded |
| External Dimensions (W×D×H) | Approx. 1600×2400×2000 mm |
| Weight | Approx. 500 kg |
| Load Capacity | Approx. 80 kg |
| Temperature Range (chamber) | 20～70℃ (adjustable) |
| Humidity Range | 30%RH～98%RH |
| Salt Spray Deposition | 1～2 ml/h/80cm² (16h average) |
| Spray Pressure | 70～170 KPa |
| Spray Modes | Continuous / Cyclic / Programmed |
| PH Range | Neutral: 6.5–7.2, Acid: 3.0–3.3 |
| Power Supply | AC 380V, 3-phase 4-wire, 50Hz |
| Total Power | 15 KW |
| Max Current | 23 A |
| Spray Principle | Bernoulli spray + precision nozzle + automatic misting |

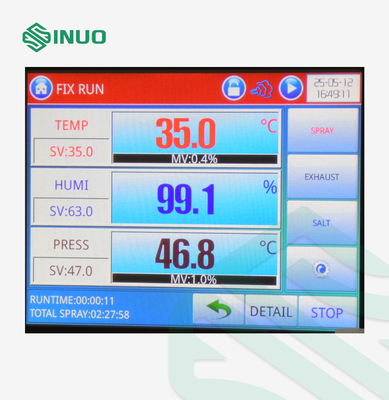

| Controller | 5.7” color touch screen, programmable (up to 120 programs) |
| Software Features | Chinese/English switchable, auto record/save, graph curves |
| Communication | RS-232 interface; PC data transfer supported |
| Heating Rate (chamber) | RT → 60℃ ≤ 45 min |
| Heating Rate (saturated tank) | RT → 65℃ ≤ 45 min |
| Refrigeration | European compressor + R404a refrigerant |
| Spray Water Supply | Manual filling with 5% NaCl solution |
| Humidity Control | PID-controlled steam humidification |
| Standards Complied | ISO 16750-4, ISO 9227, ASTM B117, IEC 60068-2-11, etc. |
| Safety Protection | Over-temp, overload, leakage, power failure memory, etc. |
Details
