| الاسم التجاري: | Sinuo |
| رقم الطراز: | SNQC1001 |
| الـ MOQ: | 1 |
| السعر: | Customized |
| شروط الدفع: | T/T |
| القدرة على التوريد: | 5 مجموعات شهريا |
Industrial Van Shower Test System Commercial Vehicle Rain Test Waterproof System
Complied Standards & Clauses
Conforms to IEC 60529 Degrees of protection provided by enclosures (IP Code);
Product Overview
Our Commercial Vehicle Rain & Waterproof Performance Test System is designed to simulate natural rain environments and evaluate the rainproof sealing of vehicles in full accordance with IEC 60529, QC/T 476-2007, GB 29753-2013, and related national standards.
This comprehensive rain test and drying system helps automakers and commercial vehicle manufacturers verify the waterproof sealing of windows, doors, skylights, and enclosures—critical for refrigerated trucks, insulated vans, and passenger vehicles. With precise spray angles, pressure control, flow rate regulation, and drying functionality, this system ensures that no leakage, fogging, or water-induced damage affects your product quality or safety certification.
Built with intelligent PLC controls, reliable filtration systems, and energy-efficient drying, it’s a one-stop solution for factory inspection, R&D validation, and technical compliance—keeping your production line safe, compliant, and efficient.
Technical Parameters
|
Item |
Specification |
|---|---|
| Standards Compliance | IEC 60529, QC/T 476-2007, GB 29753-2013, QC/T 450-2010, QC/T 453-2009 |
| Test Object | Commercial vehicles (vans, refrigerated trucks, etc.) |

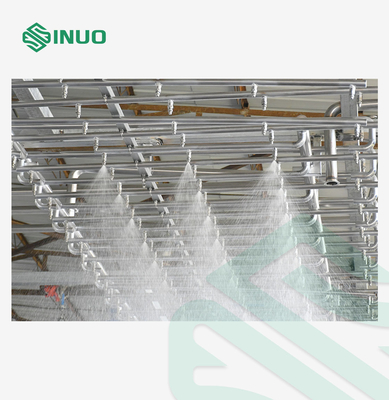

| Rain Intensity | 5–12 mm/min (±1 mm/min) |
| Spray Angle | 45° to vertical |
| Test Duration | 30 minutes |
| Spray Pressure | 69–150 kPa (±10 kPa) |
| Nozzle Diameter | 2.5 mm (±0.01 mm) |

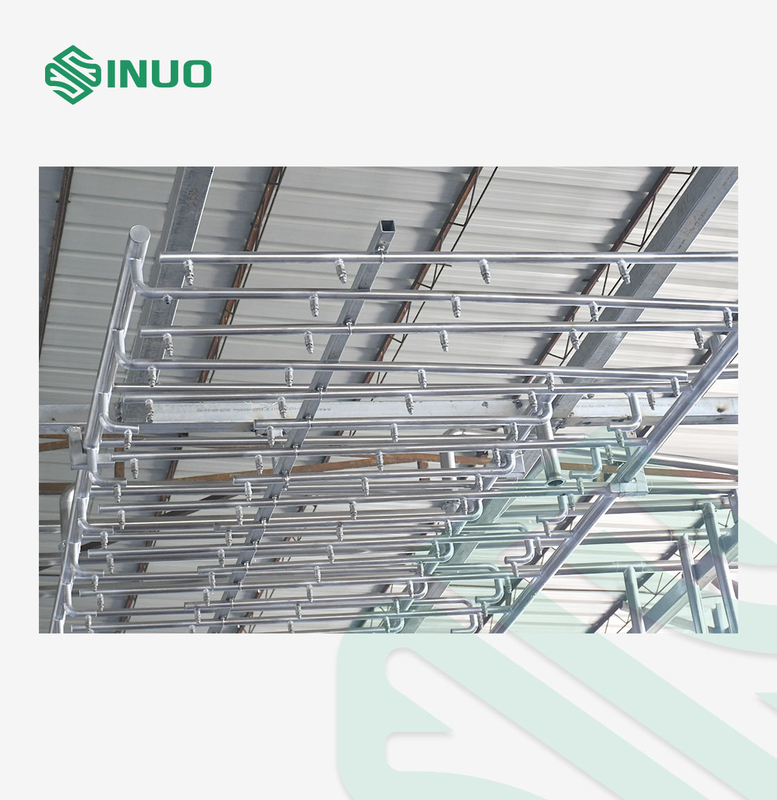

| Nozzle Spacing | 400 mm (horizontal and vertical) |
| Distance from Vehicle Body | 700 mm ±200 mm |
| Water Pump Model | KQL100/220-30 (Shanghai Kaiquan) |
| Pump Flow / Head / Power | 100 m³/h, 40 m, 30 kW (x2 units: 1 active, 1 backup) |
| Sewage Pump Model | QDX15-10-0.75 |
| Sewage Pump Flow / Head / Power | 45 m³/h, 8–13 m, 3.0 kW |
| Power Supply | AC 380V, 3-phase, 50Hz |
| Control System | PLC + control panel + remote control |
| Drying Method | Cool air drying via top and side-mounted stainless steel fans |
| Drying Air Outlet Height | Max: 2800 mm; Side ≥ 2600 mm |
| Noise Level (at 1m) | ≤ 75 dB |
| Structure Material | Hot-dip galvanized steel + EPS sandwich panel (50 mm thick) |

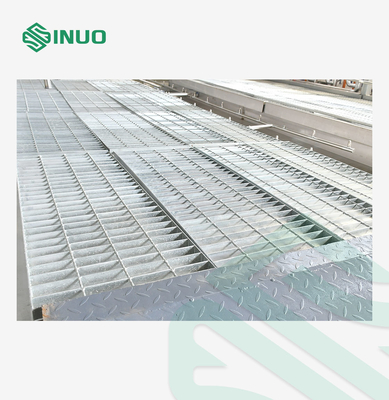

| Filtration System | Triple-stage sedimentation + 304 stainless-steel mesh filter |

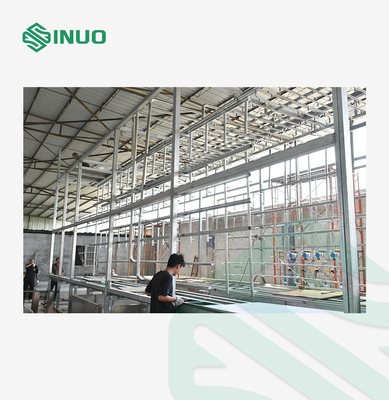

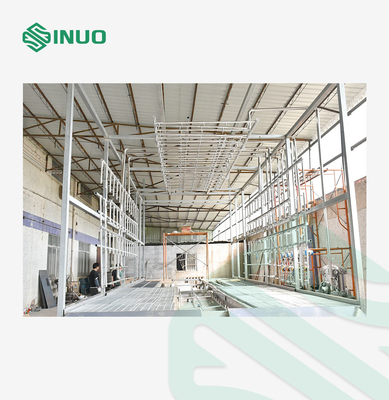

| Room Size | Designed for 14m vehicle; drive-in / drive-out configuration |
| Maintenance Access | Pedestrian door + ladders + lighting for top fan area |
Details
